Excavator Rotating Grab (Gen 2), 360° Box Tine, 5–30T
Get a quote or call 1300 441 121
The AR Equipment Gen 2 excavator rotating grab: continuous 360° rotation and box tine jaws for 5 to 30 tonne excavators.
Four sizes (5–6.5T, 7–9T, 12–16T and 20–30T) with twin cylinders rated to 5,000 psi, a Danfoss rotation motor and a cross port relief valve. The jaws close to a 30 mm gap on the smaller sizes for small rock and timber. Head bracket, hoses and couplers included. Needs two auxiliary circuits. From $9,500 ex GST.
In stock, usually dispatched same day from Burnside. 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered).
| Model | Gen 2 5–6.5T | Gen 2 7–9T | Gen 2 12–16T | Gen 2 20–30T |
|---|---|---|---|---|
| Excavator size (tonnes) | 5–6.5 | 7–9 | 12–16 | 20–30 |
| Grab weight (kg) | 340 | 395 | 900 | 1,600 |
| Max opening (mm) | 1,050 | 1,150 | 1,845 | 2,100 |
| Closing gap, jaws fully closed (mm) | 30 | 30 | 45 | 50 |
| Jaw circuit flow (L/min) | 50 | 70 | 75 | 90 |
| Pressure rating | 5,000 psi | 5,000 psi | 5,000 psi | 5,000 psi |
| Rotation circuit | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi |
| Auxiliary circuits needed | 2 | 2 | 2 | 2 |
| Case drain needed | No | No | Yes | Yes |
| Cylinders | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor |
| Rotation valving | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Price (ex GST) | $9,500 | $9,990 | $18,990 | $24,990 |
From $9,500 ex GST. The AR Equipment Gen 2 is a 360° excavator rotating grab with box tine jaws for 5 to 30 tonne excavators. Twin cylinders rated to 5,000 psi, a Danfoss rotation motor and a cross port relief valve. Head bracket, hoses and couplers included. 2-year warranty. In stock, usually dispatched same day from Burnside. Call 1300 441 121 or request a quote on this page.
Specifications
| Model | Gen 2 5–6.5T | Gen 2 7–9T | Gen 2 12–16T | Gen 2 20–30T |
|---|---|---|---|---|
| Excavator size (tonnes) | 5–6.5 | 7–9 | 12–16 | 20–30 |
| Grab weight (kg) | 340 | 395 | 900 | 1,600 |
| Max opening (mm) | 1,050 | 1,150 | 1,845 | 2,100 |
| Closing gap, jaws fully closed (mm) | 30 | 30 | 45 | 50 |
| Jaw circuit flow (L/min) | 50 | 70 | 75 | 90 |
| Pressure rating | 5,000 psi | 5,000 psi | 5,000 psi | 5,000 psi |
| Rotation circuit | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi |
| Auxiliary circuits needed | 2 | 2 | 2 | 2 |
| Case drain needed | No | No | Yes | Yes |
| Cylinders | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor |
| Rotation valving | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Price (ex GST) | $9,500 | $9,990 | $18,990 | $24,990 |
Key features
- Continuous 360° strong, low-speed rotation from a large Danfoss motor
- Box tine jaws on Q460 curved plates with boron hard-faced tips
- Tight closing: 30 mm gap on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T
- Twin cylinders rated to 5,000 psi (345 bar), the same as our twin ram grab
- Cross port relief valve on the rotation circuit, with no brake to snap the motor shaft
- NM400 ribs and slew ring plates, Q345 ear plates, guarded cylinders and hydraulics
- Head bracket, hoses and couplers included
- Four sizes: 5–6.5T, 7–9T, 12–16T and 20–30T
- Assembled, flow-bench tested, greased and checklisted at our Burnside workshop
- 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered)

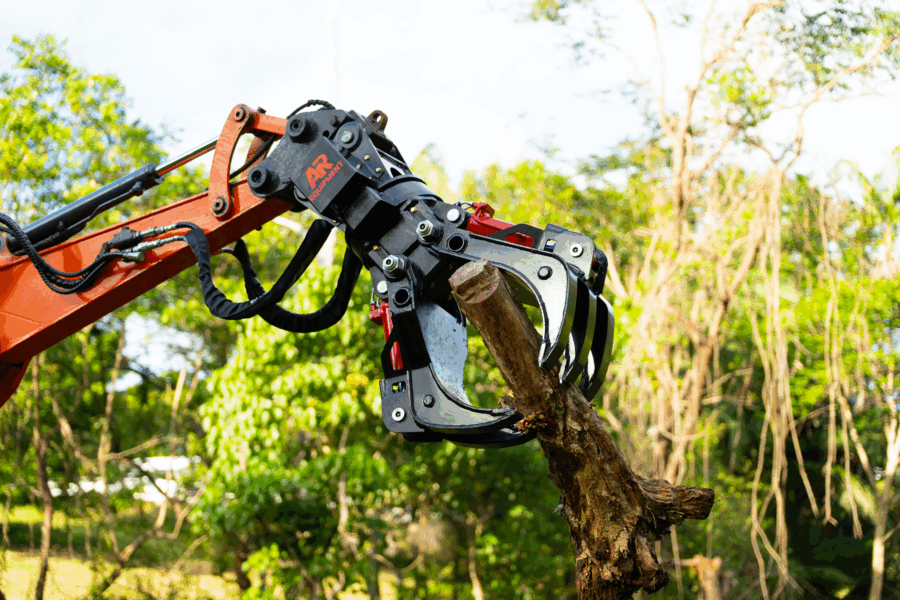

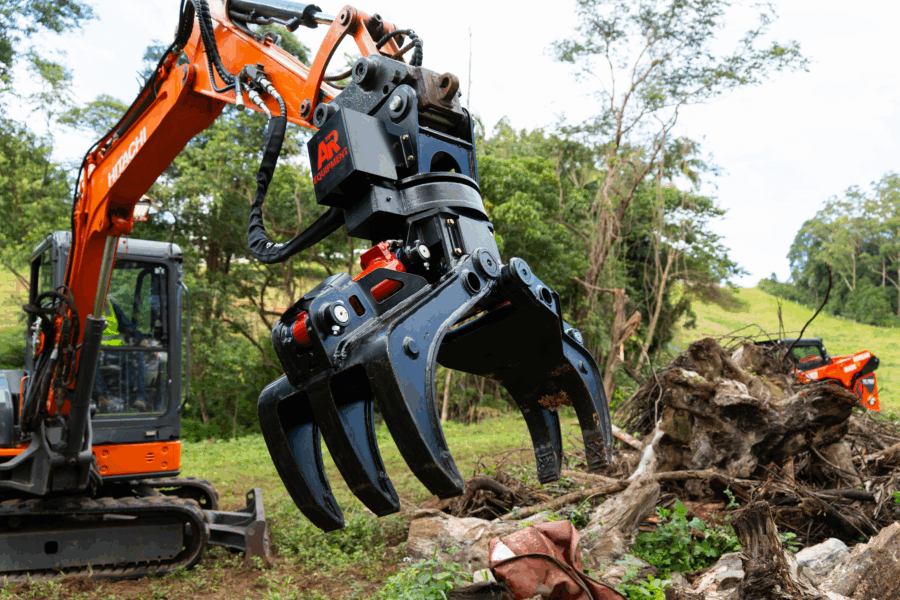

Excavator rotating grab with box tine jaws, for 5 to 30 tonne excavators
The Gen 2 is our second-generation rotating grab, designed and engineered in-house for building rock walls, setting sandstone blocks, handling timber and general land clearing and demolition work. It is a twin cylinder grab on a continuously rotating 360° head, so you turn the load to suit the job instead of tracking the machine around it. There are four sizes, 5–6.5T, 7–9T, 12–16T and 20–30T, each matched to the excavator’s weight class and auxiliary flow.
Why box tine jaws: what we changed from Gen 1
Our first-generation rotating grab used bucket-teeth tips and a serrated jaw. It was good on rock, but the teeth could fail and break off, and the serrated jaw was no good for gripping timber. For a general-purpose rotating grab, that was a design flaw.

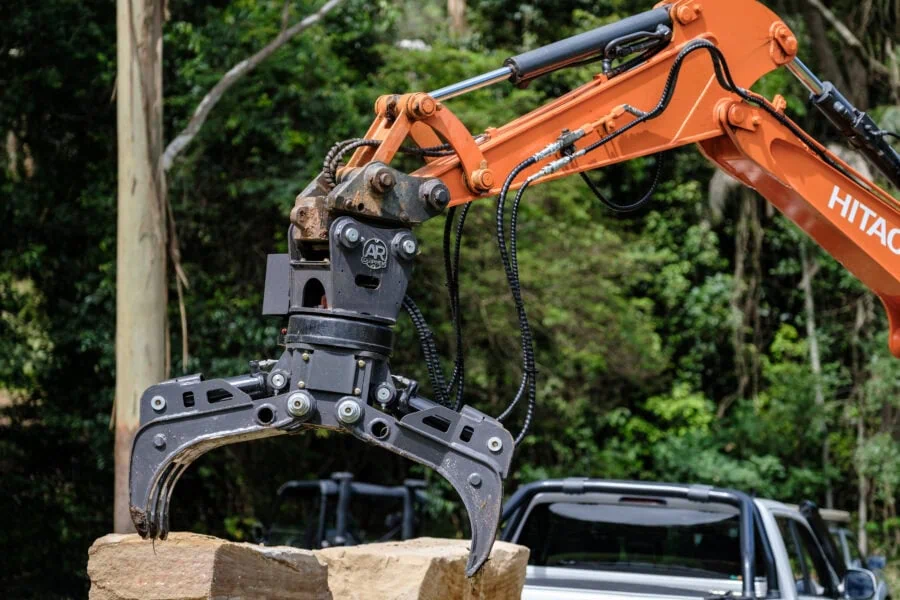

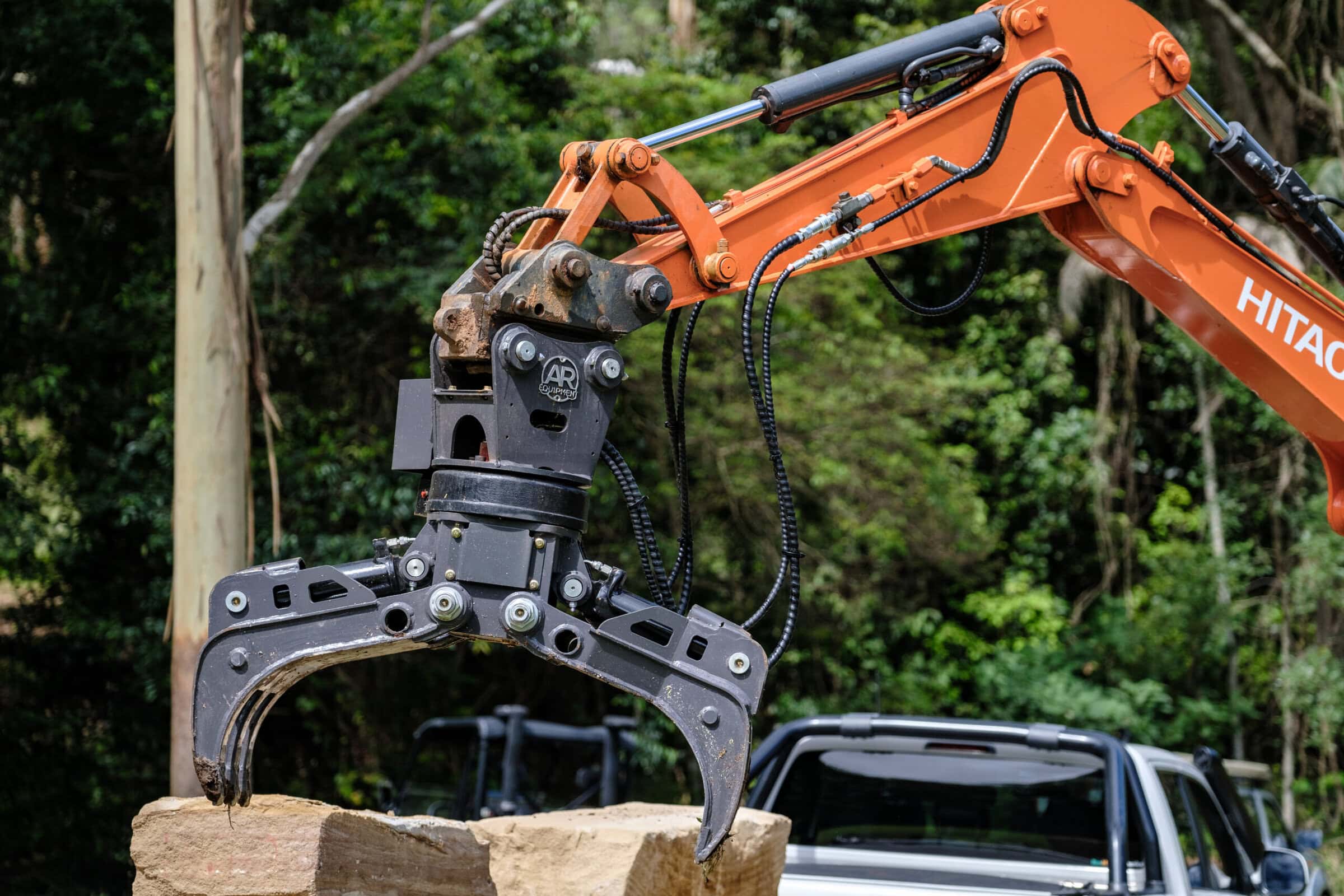

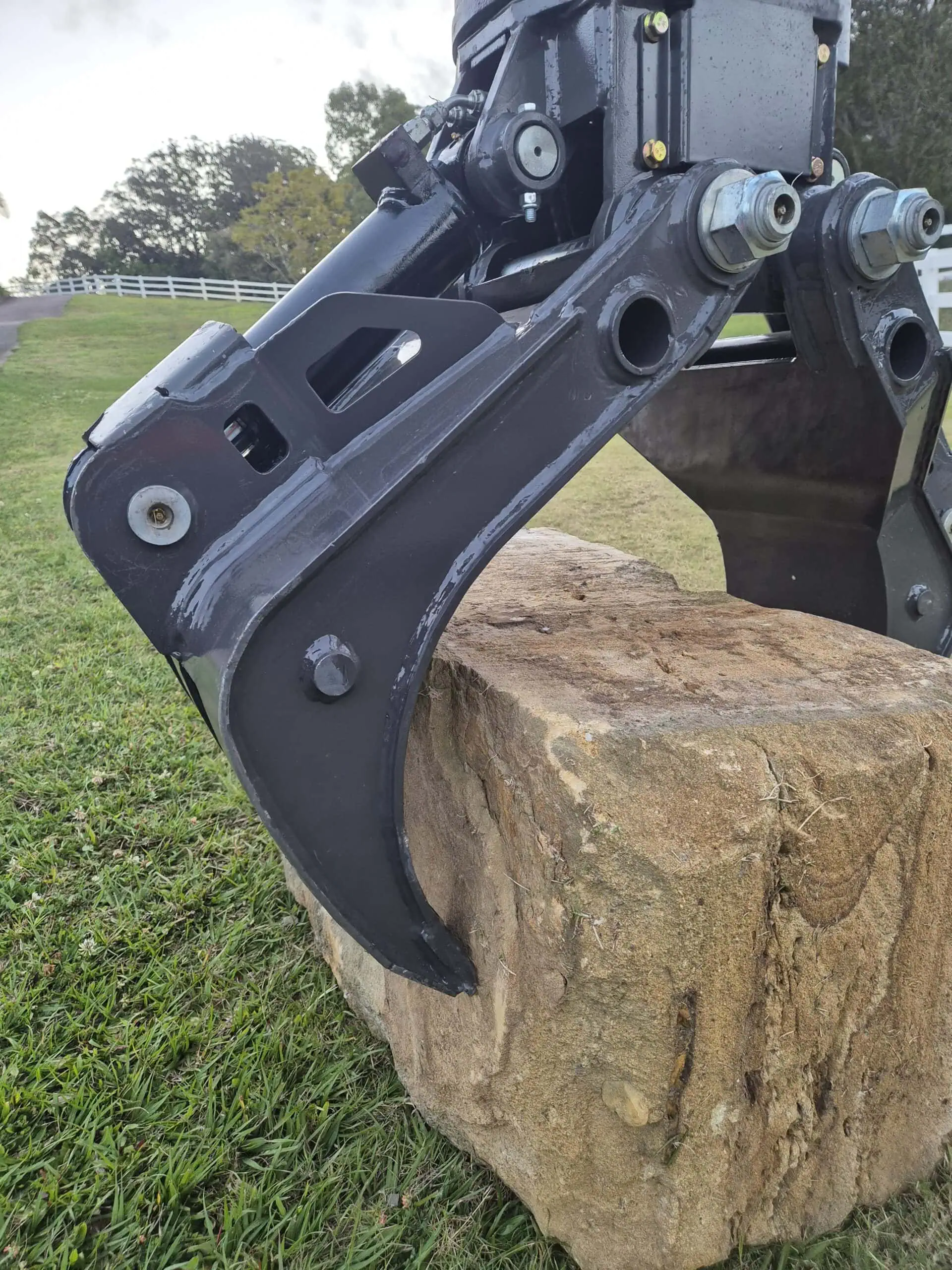

The Gen 2 replaced both with curved plates and box tine jaws. Each tine is a closed box section, so it resists bending and twisting when the weight sits out at the tips. The result is a much more rigid jaw with no more tip failures. The curved jaw shape makes it easy to grip material and pull it into the middle of the grab, and it holds sandstone blocks far better than the old design.
Tight closing for small rock and timber
With the jaws fully closed, the gap is 30 mm on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T. That lets the grab hold smaller rock, timber and offcuts that would drop through a grab that doesn’t close tight, so the same attachment can pick up a single small stone as well as a full sandstone block.
Steel and construction
The Gen 2 uses a mix of steels, each chosen for its job:
- NM400 wear-resistant steel for the structural parts: the ribs and the top and bottom plates that hold the slew ring
- Q460 high-strength steel for the curved jaw plates
- Q345 structural steel for the ear plates
- Boron hard-faced tips on the tines
- Guarded cylinders and hydraulics, to protect them from strikes on rough work
Continuous 360° rotation, and why there is no brake
Rotation comes from a large Danfoss hydraulic motor driving the slew ring. It is a strong, low-speed drive that turns a continuous 360° in either direction, so you can line up a block or log precisely and keep turning without running out of travel.
We don’t fit a rotation brake, on purpose. When a braked head is overexerted, the brake holds while the load keeps going, and that force can snap the input shaft off the motor. A brake has its place on precision grabs used for safety-critical lifting, but on a grab that does demolition, land clearing and rock work it isn’t a sound engineering solution. The Gen 2 uses a holding (balance) valve that works as a cross port relief valve on the rotation circuit, so shock loads are relieved in the hydraulics instead of being taken by the motor shaft.

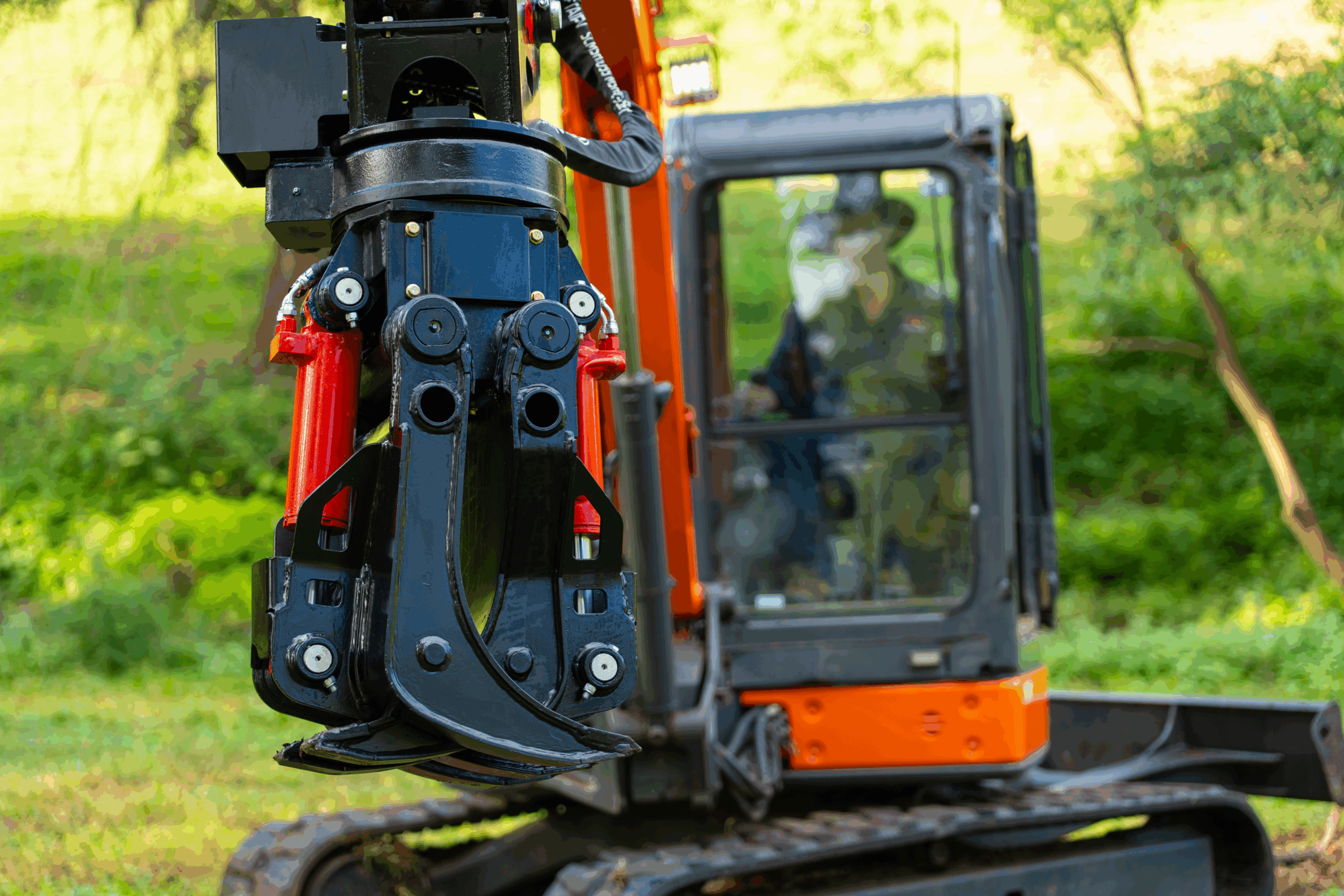

Twin cylinders, rated to 5,000 psi
Every size runs twin cylinders, the same as our twin ram grab. In fact the twin ram grab is basically a Gen 2 without the rotating head. Like every AR Equipment hydraulic grab, the cylinders are rated to 5,000 psi (345 bar).
Hydraulic requirements: two auxiliary circuits
The Gen 2 needs two auxiliary circuits on the excavator: one to open and close the jaws and one for rotation. There isn’t room on the grab for a six-port valve, and we don’t recommend running it off one circuit with an electric diverter that swaps between rotate and grab. With a diverter, the jaw circuit drops out while you rotate, so you lose grip and can drop the load. We consider that unsafe.
- Jaw circuit flow: 50 L/min (5–6.5T), 70 L/min (7–9T), 75 L/min (12–16T) and 90 L/min (20–30T)
- Cylinders rated to 5,000 psi on every size
- Rotation circuit: 12–18 L/min at 2,000 psi on every size
- Case drain: needed on the 12–16T and 20–30T only
Why a case drain only on the bigger sizes? The 12–16T and 20–30T go on more powerful machines that put larger forces through the grab, so the rotation motor needs its own low-pressure return to tank. On the 5–6.5T and 7–9T, the cross port relief valve takes care of the shock. Watch our short on what a case drain is and why it matters. Send us your machine make, model and auxiliary circuit details and we’ll confirm the set-up before you order.
Where the Gen 2 earns its keep

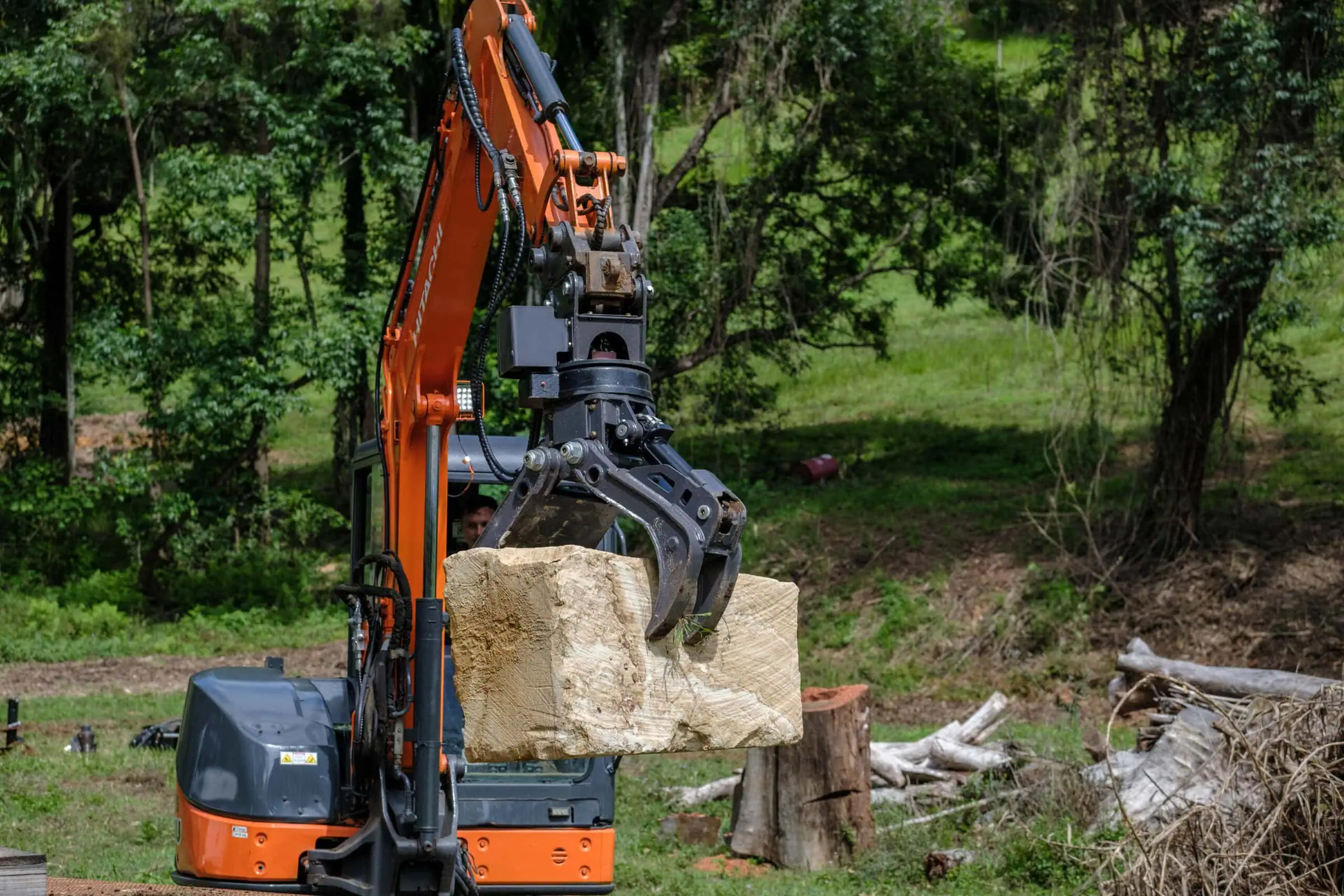

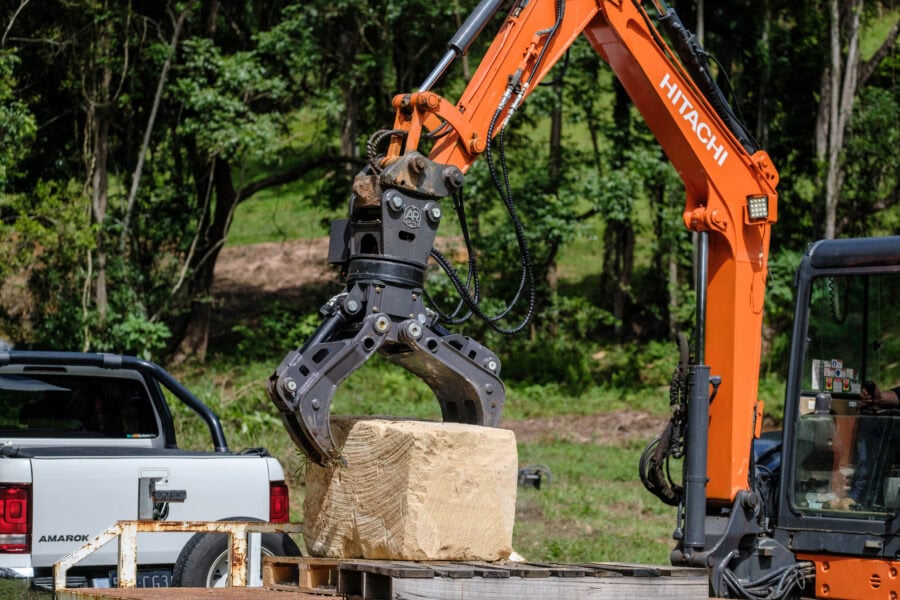

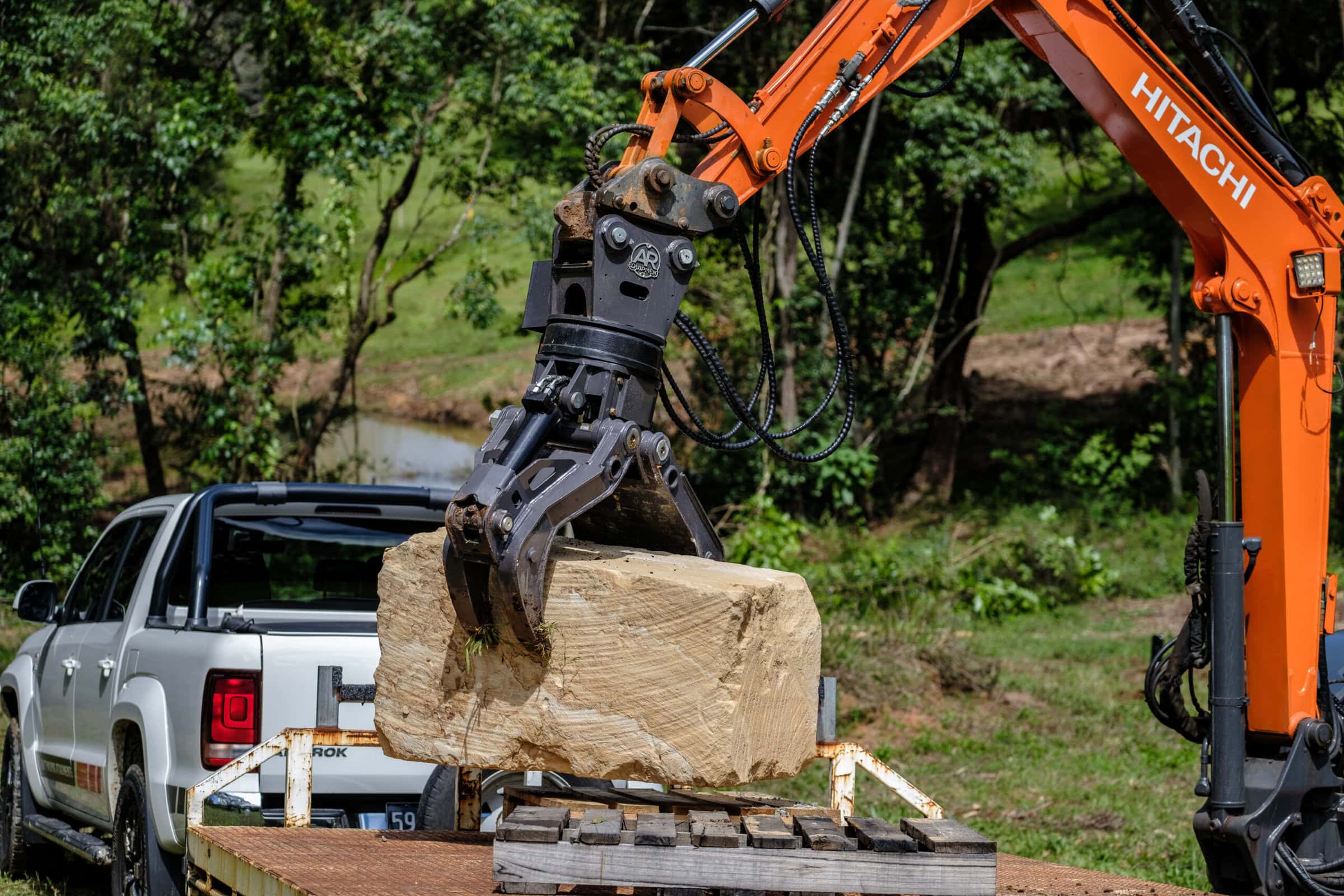

- Building rock walls and retaining walls

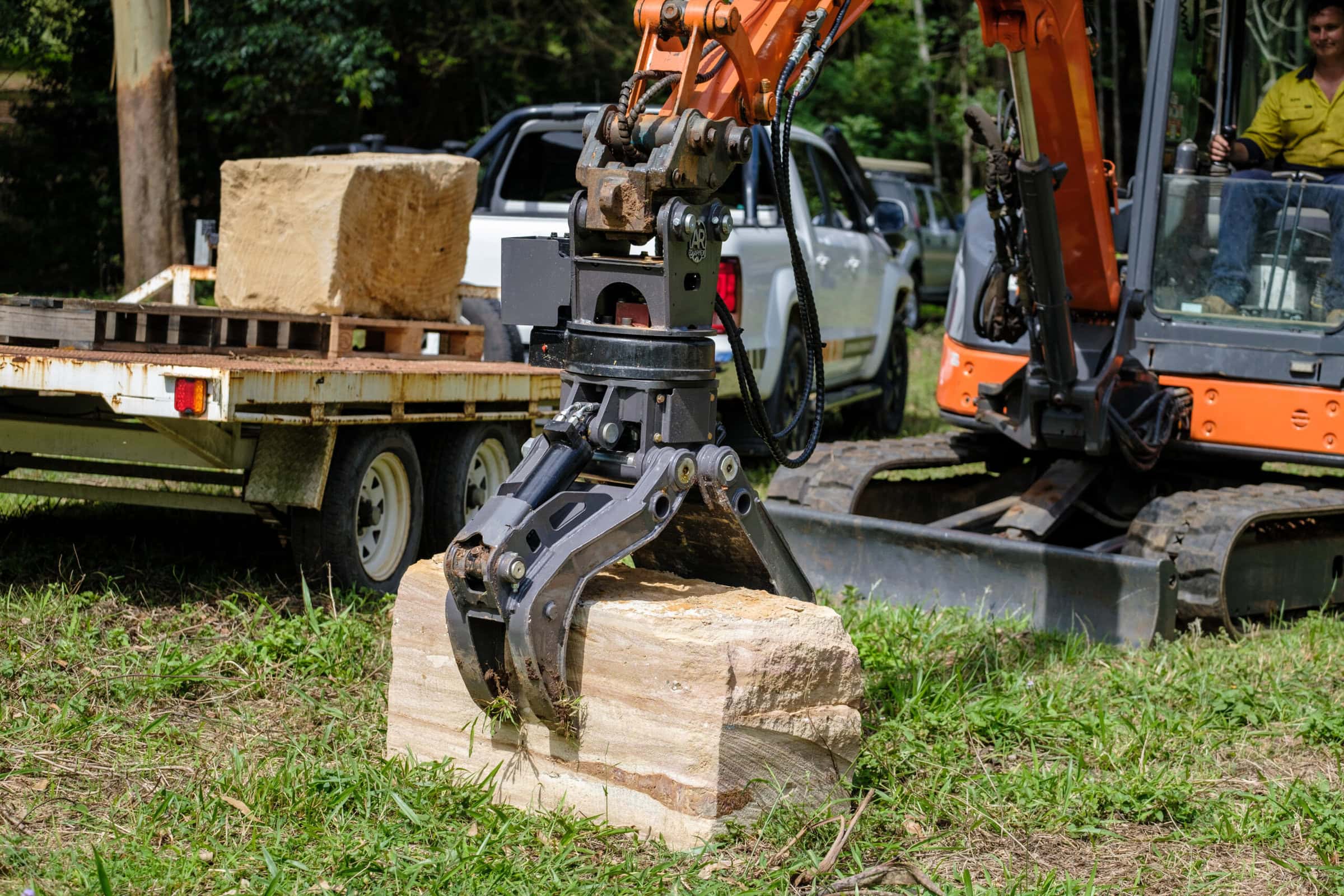

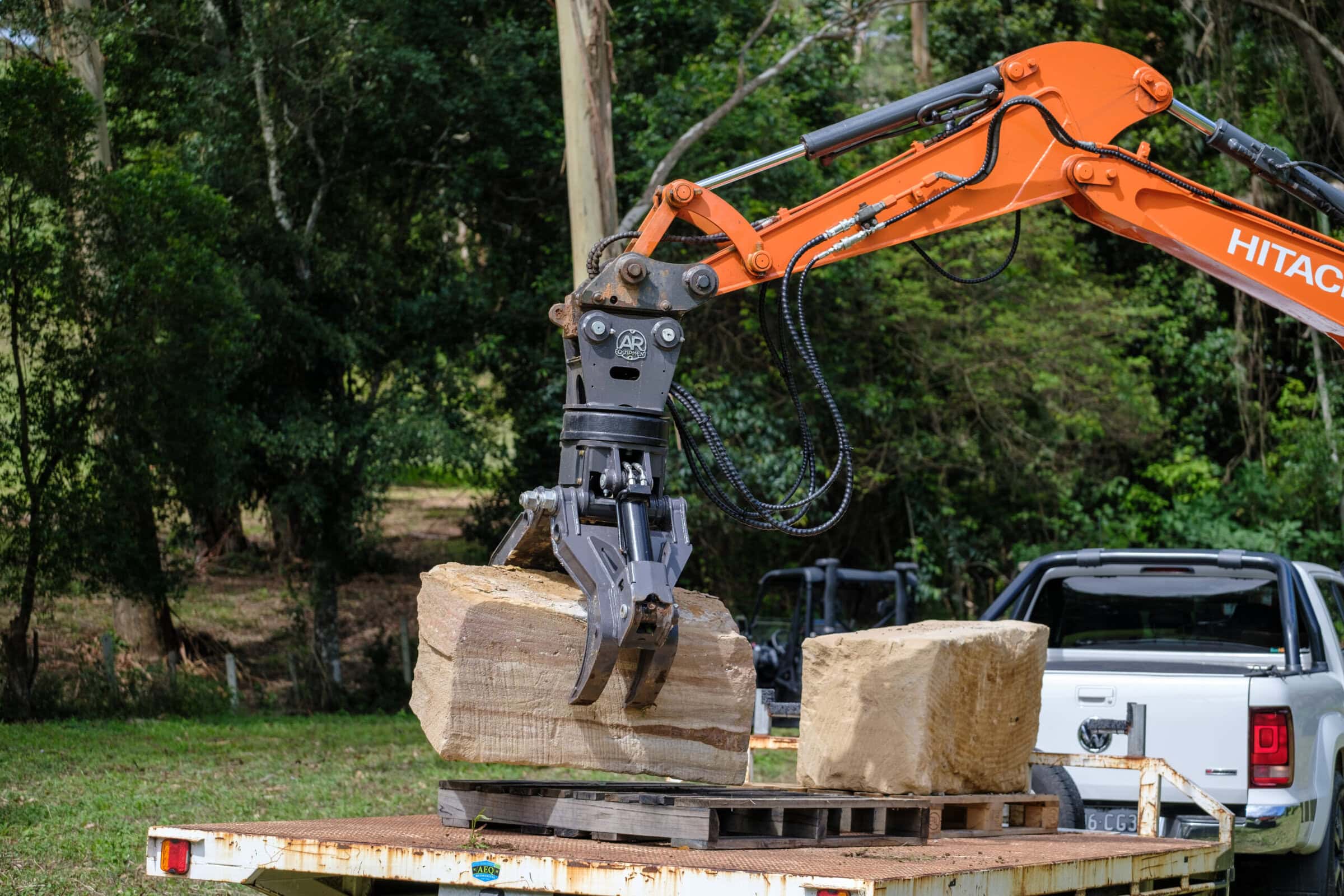

- Setting sandstone and concrete blocks

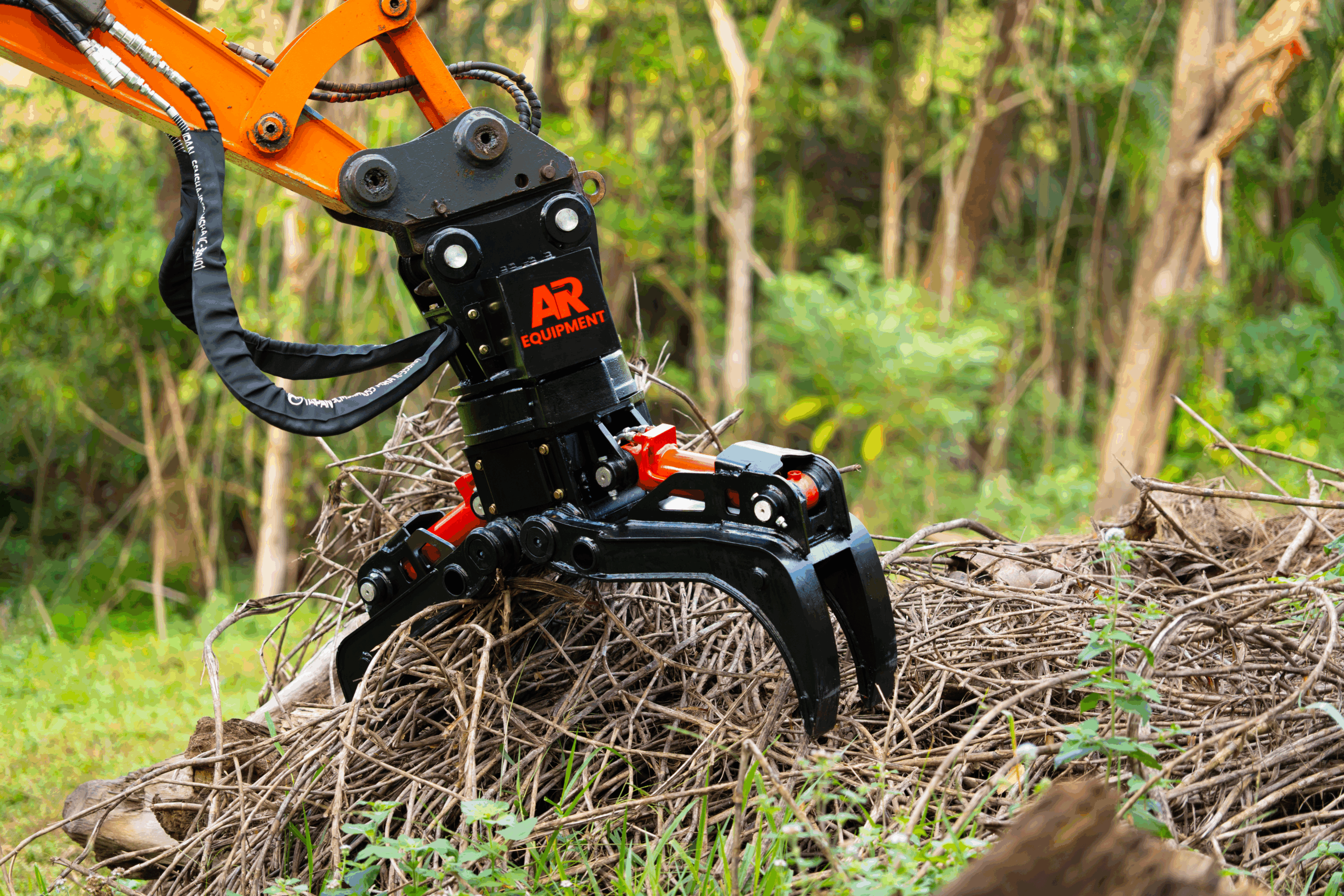

- Handling, sorting and placing timber and logs
- Land clearing
- Demolition and general site handling
What customers say
Rocksmith Construction run a Gen 2 on an 8 tonne Kubota. When they needed more opening, we redesigned the grab for them and changed it over on site.
We brought a gen 2 rotating grab from AR Equipment for our new 8 ton Kubota … We have been lifting 1.5-2 ton concrete blocks in tough conditions solidly for 6 months with the grab and I can tell you it’s been fantastic! … Not everything always goes right, but James and the team fixed the problem and made it right. I highly recommend AR Equipment and their team.
Rocksmith Construction, Google review
Which AR grab do I need?
All four of our hydraulic grabs share 5,000 psi rated cylinders and a 2-year warranty. The difference is rotation and the jaws. If you don’t need rotation, the twin ram grab is the same twin cylinder, box tine design without the rotating head. For lighter general work, the single ram grab starts at $3,750 for 5–6.5T. For waste and demolition sorting, the rotating demolition sorting grab has paddle-style jaws with a bolt-on cutting edge. What the Gen 2 adds is rotation: on wall work you turn the block to the face instead of moving the machine.
| Single ram grab | Twin ram grab | Gen 2 excavator rotating grab | Rotating demolition sorting grab | |
|---|---|---|---|---|
| Sizes on the site (tonnes) | 1–2.9, 3–4, 5–6.5, 7–9, 12–15, 20–23, 25–30, 35–45, 45–55 | 5, 8, 12, 20 | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 |
| Rotation | No | No | Continuous 360°, Danfoss motor | Yes, Danfoss motor |
| Cylinders | One large cylinder | Twin, one on each jaw | Twin, the same as the twin ram grab | Ask us |
| Cylinder rating | 5,000 psi (345 bar) | 5,000 psi (345 bar) | 5,000 psi (345 bar) | 5,000 psi (345 bar) |
| Jaws | Box tine from 3T up | Box tine, tight closing | Box tine on curved plates, closes to 30–50 mm | Large curved paddle jaws, double-sided bolt-on cutting edge |
| Best for | Logs, rock, timber, rubble, scrap and general handling | Rock handling, sorting and precise work where width matters | Rock walls, sandstone blocks, timber, land clearing and demolition | Waste handling and demolition sorting |
| Auxiliary circuits needed | 1 | Ask us | 2 | Ask us |
| Case drain | Not needed (no motor) | Not needed (no motor) | 12–16T and 20–30T only | 12–16T and 20–30T only |
| Weight, smallest size on the site (kg) | 230 (5–6.5T) | 270 (5T) | 340 (5–6.5T) | 350 (5–8T) |
| Max opening, same size (mm) | 820 | 1,050 | 1,050 | 1,100 |
| Included | Hoses and couplers | Hoses and couplers | Head bracket, hoses and couplers | Hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price, 5–6.5T class (ex GST) | $3,750 | $6,500 (5T) | $9,500 | $11,990 (5–8T) |
| Price, 7–9T class (ex GST) | $4,500 | $7,500 (8T) | $9,990 | n/a on the site |
| Price, 12–16T class (ex GST) | $6,990 (12–15T) | $14,990 (12T) | $18,990 | $18,990 |
| Price, 20–30T class (ex GST) | $10,500 (20–23T), $11,500 (25–30T) | $17,990 (20T) | $24,990 | $26,990 |
Which grab should I choose?
All four have cylinders rated to 5,000 psi. The difference is the job each one is built for.
| Gen 2 rotating grab | Rotating demolition sorting grab | Grab bucket | Twin ram grab | |
|---|---|---|---|---|
| Best for | All-purpose: demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers | Demolition and waste work: sorting fine material and bunching loose rubbish | Digging, grabbing and pulling stumps and footings: land clearing, demolition and farm work | Dedicated grab work: timber, rock and tight rubbish, without rotation |
| Jaws | Box tine on curved plates, closes to 30–50 mm | Wide-opening, curved gathering jaws with a bolt-on cutting edge | Wide-opening jaws, larger than a single ram grab, with interchangeable teeth | Box tine on curved plates, a cylinder on each jaw, closes to 30–50 mm |
| Sorting very fine material | Yes | Best: the flat bolt-on edge gives a fine pinch point | No: built to dig, grab and pull | Closes tight on small pieces; the flat bolt-on edge of the demolition grab is best for the finest material |
| Digs and pulls stumps | Not what it is built for | Not what it is built for | Yes: connects directly to the hitch | Not what it is built for |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | None: fixed | None: fixed |
| Sizes (tonnes) | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 | 3–4, 5–6.5, 7.5–9, 12–16, 20–23, 25–30 | 5–6.5, 7–9, 12–16, 20–30 |
| Price from (ex GST) | $9,500 (5–6.5T) | $11,990 (5–8T) | $2,850 (3–4T) | $6,500 (5–6.5T) |
| Warranty | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
The Gen 2 is the Swiss Army knife of our range. It handles demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers, so if you want one all-purpose rotating grab, this is the one.
If your work is mostly demolition, choose the rotating demolition sorting grab instead. Its flat bolt-on edge sorts very fine material, and its wide-opening, curved jaws gather and bunch loose rubbish.
If you don’t need rotation and do dedicated grab work, choose the twin ram grab: a cylinder on each jaw gives it 40% more clamping force than our single ram grabs, a wider opening and tight closing, from $6,500 ex GST. It’s the Gen 2 without the rotator.
If you need to dig, pull stumps or footings out of the ground, choose the grab bucket. It’s a bucket with a hydraulic jaw, from $2,850 ex GST.
See the rotating demolition sorting grab, see the twin ram grab, see the grab bucket, or request a quote or call 1300 441 121 and we’ll match the right grab to your excavator.
Watch the Gen 2 work
Gen 2 rotating grab promo
Our promotional video for the Gen 2 excavator rotating grab.
Gen 2 rotating grab explainer
How the Gen 2 works and how to set it up on your machine.
Rotating grab on a 19 tonne Caterpillar in a waste yard
An earlier video of our rotating grab on a 19 tonne Caterpillar excavator, working in a waste yard.
Designed, built and backed by AR Equipment
Designed and engineered in Australia and prototype-tested on our own machinery. Final assembly is at our Burnside QLD workshop, where every grab is flow-bench tested, greased and checklisted before dispatch. OEM quality, with a Danfoss rotation motor and our own 5,000 psi rated cylinders. It’s a quality, reliable grab at a competitive price, not a cheap import with no parts or support behind it.
In stock, well serviced and supported
Every size is in stock, with spare cylinders, rotation motors and other parts on the shelf, and our Burnside workshop services and repairs what we sell. In stock, usually dispatched same day from Burnside. Most in-stock attachments leave Burnside the same day. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Warranty
2-year warranty covering cylinder and structural failure, plus the rotator motor and valving. Hoses are never covered on any attachment. Full terms are in our Terms and Conditions.
Talk to us
AR Equipment Pty Ltd, Burnside QLD. Supplying attachments since 2014, with over 50 years of combined experience. Call 1300 441 121, Monday to Friday 7:30am to 5:00pm, or request a quote on this page.
Also see our single ram excavator grab, twin ram grab, rotating demolition sorting grab, mechanical log grab, grab buckets and all excavator grabs.
Frequently asked questions
What is an excavator rotating grab?
It’s a hydraulic grab with a powered head that turns the whole grab. You pick up a rock, log or block, then rotate it to the angle you want without moving the excavator. The Gen 2 rotates a continuous 360°, so it can keep turning in either direction.
What size rotating grab do I need?
Match it to your excavator’s weight: the Gen 2 comes in 5–6.5T, 7–9T, 12–16T and 20–30T. Check your auxiliary hydraulics against the spec table too, then send us your machine make and model and we’ll confirm the size and pins before you order.
Is there a Gen 2 for a 3–4 tonne excavator?
No. The smallest Gen 2 suits 5–6.5 tonne machines. We haven’t found a way to make a rotating grab this strong light enough for a 3–4 tonne excavator. For a 3–4 tonne excavator, our single ram grab is the one to look at. Call us and we’ll talk you through the options.
What does box tine mean?
Each tine (finger) of the jaw is built as a closed box section instead of a flat plate. A box section resists bending and twisting, so the tines stay straight and the tips don’t fail when the weight sits right out at the end of the jaw.
Will it pick up small rocks?
Yes. With the jaws fully closed, the gap is 30 mm on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T, so smaller rock and timber don’t slip through.
Can I build a rock or sandstone wall with it?
Yes, that’s one of the main jobs it was designed for. The box tine jaws grip and centre the block, and the 360° rotation lets you turn each block to the face of the wall instead of repositioning the machine.
What hydraulics does my excavator need?
Two auxiliary circuits: one for opening and closing the jaws, and one for rotation. The jaws need 50 L/min on the 5–6.5T, 70 on the 7–9T, 75 on the 12–16T and 90 on the 20–30T. Rotation needs 12–18 L/min at 2,000 psi on every size. The 12–16T and 20–30T also need a case drain.
Why does it need two auxiliary circuits? Can I use a diverter valve?
We don’t recommend it. There isn’t room on the grab for a six-port valve, and with an electric diverter that swaps one circuit between rotate and grab, the jaws lose pressure while you rotate. You can drop the load, and we consider that unsafe.
What is a case drain and does my grab need one?
A case drain is a separate low-pressure line that returns oil from the rotation motor’s case to the tank. The 12–16T and 20–30T need one, because bigger, more powerful machines put larger forces through the grab. The 5–6.5T and 7–9T don’t, because the cross port relief valve handles the shock on smaller machines. Watch our short on what a case drain is.
Does the rotation have a brake?
No, on purpose. If a grab with a rotation brake is overloaded, the brake holds while the load keeps going, and that force can snap the input shaft off the motor. Instead, the Gen 2 uses a holding (balance) valve that works as a cross port relief valve on the rotation circuit.
What’s included?
The head bracket, hoses and couplers. The pins are matched to your machine, so tell us your excavator make and model when you order.
How is it different from the single ram, twin ram and rotating demolition sorting grabs?
The single ram grab closes on one cylinder and doesn’t rotate. The twin ram grab is basically a Gen 2 without the rotating head: the same twin cylinders and box tine jaws. The rotating demolition sorting grab rotates too, but has paddle-style jaws with a bolt-on cutting edge for waste and demolition sorting. The Gen 2’s box tine jaws suit rock walls, sandstone and timber.
What changed from the Gen 1 rotating grab?
The Gen 1 had bucket-teeth tips that could fail and break off, and serrated jaws that were good on rock but no good for gripping timber. The Gen 2 uses curved plates and box tine jaws, which are much more rigid, have had no tip failures, and grip timber and sandstone blocks far better.
How much does the Gen 2 rotating grab cost?
Prices ex GST: 5–6.5T $9,500, 7–9T $9,990, 12–16T $18,990 and 20–30T $24,990. Freight is calculated on your quote or at checkout.
What warranty does it have?
2 years, covering cylinder and structural failure, plus the rotator motor and valving. Hoses are never covered on any attachment.
Is it in stock and how fast can I get one?
Yes. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Where is it made?
The Gen 2 is designed and engineered in Australia by AR Equipment and prototype-tested on our own machinery. The body is fabricated in China to our design, and final assembly, flow-bench testing, greasing and a pre-dispatch checklist are done at our Burnside QLD workshop.
Can I get spare parts and servicing?
Yes. We hold Gen 2 parts, including cylinders and rotation motors, and our Burnside workshop services and repairs what we sell.
Can I finance it?
Use the finance calculator on this page to estimate repayments. Repayments are indicative only and subject to approval and credit assessment.
How do I order or get a quote?
Use the quote form on this page or call 1300 441 121, Monday to Friday 7:30am to 5:00pm.



Excavator Rotating Grab (Gen 2)
$9,500.00 $24,990.00 ex-GST
Category: Excavator Grabs
Need Finance?
Use our finance calculator to estimate your repayments.
Estimate your repayments
Disclaimer: Repayments are indicative only and subject to approval and credit assessment.
Key Features
- Continuous 360° strong, low-speed rotation from a large Danfoss motor
- Box tine jaws on Q460 curved plates with boron hard-faced tips
- Tight closing: 30 mm gap on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T
- Twin cylinders rated to 5,000 psi (345 bar), the same as our twin ram grab
- Cross port relief valve on the rotation circuit, with no brake to snap the motor shaft
- NM400 ribs and slew ring plates, Q345 ear plates, guarded cylinders and hydraulics
- Head bracket, hoses and couplers included
- Four sizes: 5–6.5T, 7–9T, 12–16T and 20–30T
- Assembled, flow-bench tested, greased and checklisted at our Burnside workshop
- 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered)
Excavator Rotating Grab (Gen 2)
$9,500.00 $24,990.00 ex-GST
Need Finance?
Use our finance calculator to estimate your repayments.
Estimate your repayments
Disclaimer: Repayments are indicative only and subject to approval and credit assessment.
Key Features
- Continuous 360° strong, low-speed rotation from a large Danfoss motor
- Box tine jaws on Q460 curved plates with boron hard-faced tips
- Tight closing: 30 mm gap on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T
- Twin cylinders rated to 5,000 psi (345 bar), the same as our twin ram grab
- Cross port relief valve on the rotation circuit, with no brake to snap the motor shaft
- NM400 ribs and slew ring plates, Q345 ear plates, guarded cylinders and hydraulics
- Head bracket, hoses and couplers included
- Four sizes: 5–6.5T, 7–9T, 12–16T and 20–30T
- Assembled, flow-bench tested, greased and checklisted at our Burnside workshop
- 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered)
Product Overview
Get a quote or call 1300 441 121
The AR Equipment Gen 2 excavator rotating grab: continuous 360° rotation and box tine jaws for 5 to 30 tonne excavators.
Four sizes (5–6.5T, 7–9T, 12–16T and 20–30T) with twin cylinders rated to 5,000 psi, a Danfoss rotation motor and a cross port relief valve. The jaws close to a 30 mm gap on the smaller sizes for small rock and timber. Head bracket, hoses and couplers included. Needs two auxiliary circuits. From $9,500 ex GST.
In stock, usually dispatched same day from Burnside. 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered).
| Model | Gen 2 5–6.5T | Gen 2 7–9T | Gen 2 12–16T | Gen 2 20–30T |
|---|---|---|---|---|
| Excavator size (tonnes) | 5–6.5 | 7–9 | 12–16 | 20–30 |
| Grab weight (kg) | 340 | 395 | 900 | 1,600 |
| Max opening (mm) | 1,050 | 1,150 | 1,845 | 2,100 |
| Closing gap, jaws fully closed (mm) | 30 | 30 | 45 | 50 |
| Jaw circuit flow (L/min) | 50 | 70 | 75 | 90 |
| Pressure rating | 5,000 psi | 5,000 psi | 5,000 psi | 5,000 psi |
| Rotation circuit | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi |
| Auxiliary circuits needed | 2 | 2 | 2 | 2 |
| Case drain needed | No | No | Yes | Yes |
| Cylinders | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor |
| Rotation valving | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Price (ex GST) | $9,500 | $9,990 | $18,990 | $24,990 |
From $9,500 ex GST. The AR Equipment Gen 2 is a 360° excavator rotating grab with box tine jaws for 5 to 30 tonne excavators. Twin cylinders rated to 5,000 psi, a Danfoss rotation motor and a cross port relief valve. Head bracket, hoses and couplers included. 2-year warranty. In stock, usually dispatched same day from Burnside. Call 1300 441 121 or request a quote on this page.
Specifications
| Model | Gen 2 5–6.5T | Gen 2 7–9T | Gen 2 12–16T | Gen 2 20–30T |
|---|---|---|---|---|
| Excavator size (tonnes) | 5–6.5 | 7–9 | 12–16 | 20–30 |
| Grab weight (kg) | 340 | 395 | 900 | 1,600 |
| Max opening (mm) | 1,050 | 1,150 | 1,845 | 2,100 |
| Closing gap, jaws fully closed (mm) | 30 | 30 | 45 | 50 |
| Jaw circuit flow (L/min) | 50 | 70 | 75 | 90 |
| Pressure rating | 5,000 psi | 5,000 psi | 5,000 psi | 5,000 psi |
| Rotation circuit | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi | 12–18 L/min at 2,000 psi |
| Auxiliary circuits needed | 2 | 2 | 2 | 2 |
| Case drain needed | No | No | Yes | Yes |
| Cylinders | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) | Twin, rated to 5,000 psi (345 bar) |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor |
| Rotation valving | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake | Cross port relief valve, no brake |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Price (ex GST) | $9,500 | $9,990 | $18,990 | $24,990 |
Key features
- Continuous 360° strong, low-speed rotation from a large Danfoss motor
- Box tine jaws on Q460 curved plates with boron hard-faced tips
- Tight closing: 30 mm gap on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T
- Twin cylinders rated to 5,000 psi (345 bar), the same as our twin ram grab
- Cross port relief valve on the rotation circuit, with no brake to snap the motor shaft
- NM400 ribs and slew ring plates, Q345 ear plates, guarded cylinders and hydraulics
- Head bracket, hoses and couplers included
- Four sizes: 5–6.5T, 7–9T, 12–16T and 20–30T
- Assembled, flow-bench tested, greased and checklisted at our Burnside workshop
- 2-year warranty covering cylinder and structural failure, plus the rotator motor and valving (hoses not covered)
Excavator rotating grab with box tine jaws, for 5 to 30 tonne excavators
The Gen 2 is our second-generation rotating grab, designed and engineered in-house for building rock walls, setting sandstone blocks, handling timber and general land clearing and demolition work. It is a twin cylinder grab on a continuously rotating 360° head, so you turn the load to suit the job instead of tracking the machine around it. There are four sizes, 5–6.5T, 7–9T, 12–16T and 20–30T, each matched to the excavator’s weight class and auxiliary flow.
Why box tine jaws: what we changed from Gen 1
Our first-generation rotating grab used bucket-teeth tips and a serrated jaw. It was good on rock, but the teeth could fail and break off, and the serrated jaw was no good for gripping timber. For a general-purpose rotating grab, that was a design flaw.
The Gen 2 replaced both with curved plates and box tine jaws. Each tine is a closed box section, so it resists bending and twisting when the weight sits out at the tips. The result is a much more rigid jaw with no more tip failures. The curved jaw shape makes it easy to grip material and pull it into the middle of the grab, and it holds sandstone blocks far better than the old design.
Tight closing for small rock and timber
With the jaws fully closed, the gap is 30 mm on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T. That lets the grab hold smaller rock, timber and offcuts that would drop through a grab that doesn’t close tight, so the same attachment can pick up a single small stone as well as a full sandstone block.
Steel and construction
The Gen 2 uses a mix of steels, each chosen for its job:
- NM400 wear-resistant steel for the structural parts: the ribs and the top and bottom plates that hold the slew ring
- Q460 high-strength steel for the curved jaw plates
- Q345 structural steel for the ear plates
- Boron hard-faced tips on the tines
- Guarded cylinders and hydraulics, to protect them from strikes on rough work
Continuous 360° rotation, and why there is no brake
Rotation comes from a large Danfoss hydraulic motor driving the slew ring. It is a strong, low-speed drive that turns a continuous 360° in either direction, so you can line up a block or log precisely and keep turning without running out of travel.
We don’t fit a rotation brake, on purpose. When a braked head is overexerted, the brake holds while the load keeps going, and that force can snap the input shaft off the motor. A brake has its place on precision grabs used for safety-critical lifting, but on a grab that does demolition, land clearing and rock work it isn’t a sound engineering solution. The Gen 2 uses a holding (balance) valve that works as a cross port relief valve on the rotation circuit, so shock loads are relieved in the hydraulics instead of being taken by the motor shaft.
Twin cylinders, rated to 5,000 psi
Every size runs twin cylinders, the same as our twin ram grab. In fact the twin ram grab is basically a Gen 2 without the rotating head. Like every AR Equipment hydraulic grab, the cylinders are rated to 5,000 psi (345 bar).
Hydraulic requirements: two auxiliary circuits
The Gen 2 needs two auxiliary circuits on the excavator: one to open and close the jaws and one for rotation. There isn’t room on the grab for a six-port valve, and we don’t recommend running it off one circuit with an electric diverter that swaps between rotate and grab. With a diverter, the jaw circuit drops out while you rotate, so you lose grip and can drop the load. We consider that unsafe.
- Jaw circuit flow: 50 L/min (5–6.5T), 70 L/min (7–9T), 75 L/min (12–16T) and 90 L/min (20–30T)
- Cylinders rated to 5,000 psi on every size
- Rotation circuit: 12–18 L/min at 2,000 psi on every size
- Case drain: needed on the 12–16T and 20–30T only
Why a case drain only on the bigger sizes? The 12–16T and 20–30T go on more powerful machines that put larger forces through the grab, so the rotation motor needs its own low-pressure return to tank. On the 5–6.5T and 7–9T, the cross port relief valve takes care of the shock. Watch our short on what a case drain is and why it matters. Send us your machine make, model and auxiliary circuit details and we’ll confirm the set-up before you order.
Where the Gen 2 earns its keep
- Building rock walls and retaining walls
- Setting sandstone and concrete blocks
- Handling, sorting and placing timber and logs
- Land clearing
- Demolition and general site handling
What customers say
Rocksmith Construction run a Gen 2 on an 8 tonne Kubota. When they needed more opening, we redesigned the grab for them and changed it over on site.
We brought a gen 2 rotating grab from AR Equipment for our new 8 ton Kubota … We have been lifting 1.5-2 ton concrete blocks in tough conditions solidly for 6 months with the grab and I can tell you it’s been fantastic! … Not everything always goes right, but James and the team fixed the problem and made it right. I highly recommend AR Equipment and their team.
Rocksmith Construction, Google review
Which AR grab do I need?
All four of our hydraulic grabs share 5,000 psi rated cylinders and a 2-year warranty. The difference is rotation and the jaws. If you don’t need rotation, the twin ram grab is the same twin cylinder, box tine design without the rotating head. For lighter general work, the single ram grab starts at $3,750 for 5–6.5T. For waste and demolition sorting, the rotating demolition sorting grab has paddle-style jaws with a bolt-on cutting edge. What the Gen 2 adds is rotation: on wall work you turn the block to the face instead of moving the machine.
| Single ram grab | Twin ram grab | Gen 2 excavator rotating grab | Rotating demolition sorting grab | |
|---|---|---|---|---|
| Sizes on the site (tonnes) | 1–2.9, 3–4, 5–6.5, 7–9, 12–15, 20–23, 25–30, 35–45, 45–55 | 5, 8, 12, 20 | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 |
| Rotation | No | No | Continuous 360°, Danfoss motor | Yes, Danfoss motor |
| Cylinders | One large cylinder | Twin, one on each jaw | Twin, the same as the twin ram grab | Ask us |
| Cylinder rating | 5,000 psi (345 bar) | 5,000 psi (345 bar) | 5,000 psi (345 bar) | 5,000 psi (345 bar) |
| Jaws | Box tine from 3T up | Box tine, tight closing | Box tine on curved plates, closes to 30–50 mm | Large curved paddle jaws, double-sided bolt-on cutting edge |
| Best for | Logs, rock, timber, rubble, scrap and general handling | Rock handling, sorting and precise work where width matters | Rock walls, sandstone blocks, timber, land clearing and demolition | Waste handling and demolition sorting |
| Auxiliary circuits needed | 1 | Ask us | 2 | Ask us |
| Case drain | Not needed (no motor) | Not needed (no motor) | 12–16T and 20–30T only | 12–16T and 20–30T only |
| Weight, smallest size on the site (kg) | 230 (5–6.5T) | 270 (5T) | 340 (5–6.5T) | 350 (5–8T) |
| Max opening, same size (mm) | 820 | 1,050 | 1,050 | 1,100 |
| Included | Hoses and couplers | Hoses and couplers | Head bracket, hoses and couplers | Hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price, 5–6.5T class (ex GST) | $3,750 | $6,500 (5T) | $9,500 | $11,990 (5–8T) |
| Price, 7–9T class (ex GST) | $4,500 | $7,500 (8T) | $9,990 | n/a on the site |
| Price, 12–16T class (ex GST) | $6,990 (12–15T) | $14,990 (12T) | $18,990 | $18,990 |
| Price, 20–30T class (ex GST) | $10,500 (20–23T), $11,500 (25–30T) | $17,990 (20T) | $24,990 | $26,990 |
Which grab should I choose?
All four have cylinders rated to 5,000 psi. The difference is the job each one is built for.
| Gen 2 rotating grab | Rotating demolition sorting grab | Grab bucket | Twin ram grab | |
|---|---|---|---|---|
| Best for | All-purpose: demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers | Demolition and waste work: sorting fine material and bunching loose rubbish | Digging, grabbing and pulling stumps and footings: land clearing, demolition and farm work | Dedicated grab work: timber, rock and tight rubbish, without rotation |
| Jaws | Box tine on curved plates, closes to 30–50 mm | Wide-opening, curved gathering jaws with a bolt-on cutting edge | Wide-opening jaws, larger than a single ram grab, with interchangeable teeth | Box tine on curved plates, a cylinder on each jaw, closes to 30–50 mm |
| Sorting very fine material | Yes | Best: the flat bolt-on edge gives a fine pinch point | No: built to dig, grab and pull | Closes tight on small pieces; the flat bolt-on edge of the demolition grab is best for the finest material |
| Digs and pulls stumps | Not what it is built for | Not what it is built for | Yes: connects directly to the hitch | Not what it is built for |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | None: fixed | None: fixed |
| Sizes (tonnes) | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 | 3–4, 5–6.5, 7.5–9, 12–16, 20–23, 25–30 | 5–6.5, 7–9, 12–16, 20–30 |
| Price from (ex GST) | $9,500 (5–6.5T) | $11,990 (5–8T) | $2,850 (3–4T) | $6,500 (5–6.5T) |
| Warranty | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
The Gen 2 is the Swiss Army knife of our range. It handles demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers, so if you want one all-purpose rotating grab, this is the one.
If your work is mostly demolition, choose the rotating demolition sorting grab instead. Its flat bolt-on edge sorts very fine material, and its wide-opening, curved jaws gather and bunch loose rubbish.
If you don’t need rotation and do dedicated grab work, choose the twin ram grab: a cylinder on each jaw gives it 40% more clamping force than our single ram grabs, a wider opening and tight closing, from $6,500 ex GST. It’s the Gen 2 without the rotator.
If you need to dig, pull stumps or footings out of the ground, choose the grab bucket. It’s a bucket with a hydraulic jaw, from $2,850 ex GST.
See the rotating demolition sorting grab, see the twin ram grab, see the grab bucket, or request a quote or call 1300 441 121 and we’ll match the right grab to your excavator.
Watch the Gen 2 work
Gen 2 rotating grab promo
Our promotional video for the Gen 2 excavator rotating grab.
Gen 2 rotating grab explainer
How the Gen 2 works and how to set it up on your machine.
Rotating grab on a 19 tonne Caterpillar in a waste yard
An earlier video of our rotating grab on a 19 tonne Caterpillar excavator, working in a waste yard.
Designed, built and backed by AR Equipment
Designed and engineered in Australia and prototype-tested on our own machinery. Final assembly is at our Burnside QLD workshop, where every grab is flow-bench tested, greased and checklisted before dispatch. OEM quality, with a Danfoss rotation motor and our own 5,000 psi rated cylinders. It’s a quality, reliable grab at a competitive price, not a cheap import with no parts or support behind it.
In stock, well serviced and supported
Every size is in stock, with spare cylinders, rotation motors and other parts on the shelf, and our Burnside workshop services and repairs what we sell. In stock, usually dispatched same day from Burnside. Most in-stock attachments leave Burnside the same day. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Warranty
2-year warranty covering cylinder and structural failure, plus the rotator motor and valving. Hoses are never covered on any attachment. Full terms are in our Terms and Conditions.
Talk to us
AR Equipment Pty Ltd, Burnside QLD. Supplying attachments since 2014, with over 50 years of combined experience. Call 1300 441 121, Monday to Friday 7:30am to 5:00pm, or request a quote on this page.
Also see our single ram excavator grab, twin ram grab, rotating demolition sorting grab, mechanical log grab, grab buckets and all excavator grabs.
Frequently asked questions
What is an excavator rotating grab?
It’s a hydraulic grab with a powered head that turns the whole grab. You pick up a rock, log or block, then rotate it to the angle you want without moving the excavator. The Gen 2 rotates a continuous 360°, so it can keep turning in either direction.
What size rotating grab do I need?
Match it to your excavator’s weight: the Gen 2 comes in 5–6.5T, 7–9T, 12–16T and 20–30T. Check your auxiliary hydraulics against the spec table too, then send us your machine make and model and we’ll confirm the size and pins before you order.
Is there a Gen 2 for a 3–4 tonne excavator?
No. The smallest Gen 2 suits 5–6.5 tonne machines. We haven’t found a way to make a rotating grab this strong light enough for a 3–4 tonne excavator. For a 3–4 tonne excavator, our single ram grab is the one to look at. Call us and we’ll talk you through the options.
What does box tine mean?
Each tine (finger) of the jaw is built as a closed box section instead of a flat plate. A box section resists bending and twisting, so the tines stay straight and the tips don’t fail when the weight sits right out at the end of the jaw.
Will it pick up small rocks?
Yes. With the jaws fully closed, the gap is 30 mm on the 5–6.5T and 7–9T, 45 mm on the 12–16T and 50 mm on the 20–30T, so smaller rock and timber don’t slip through.

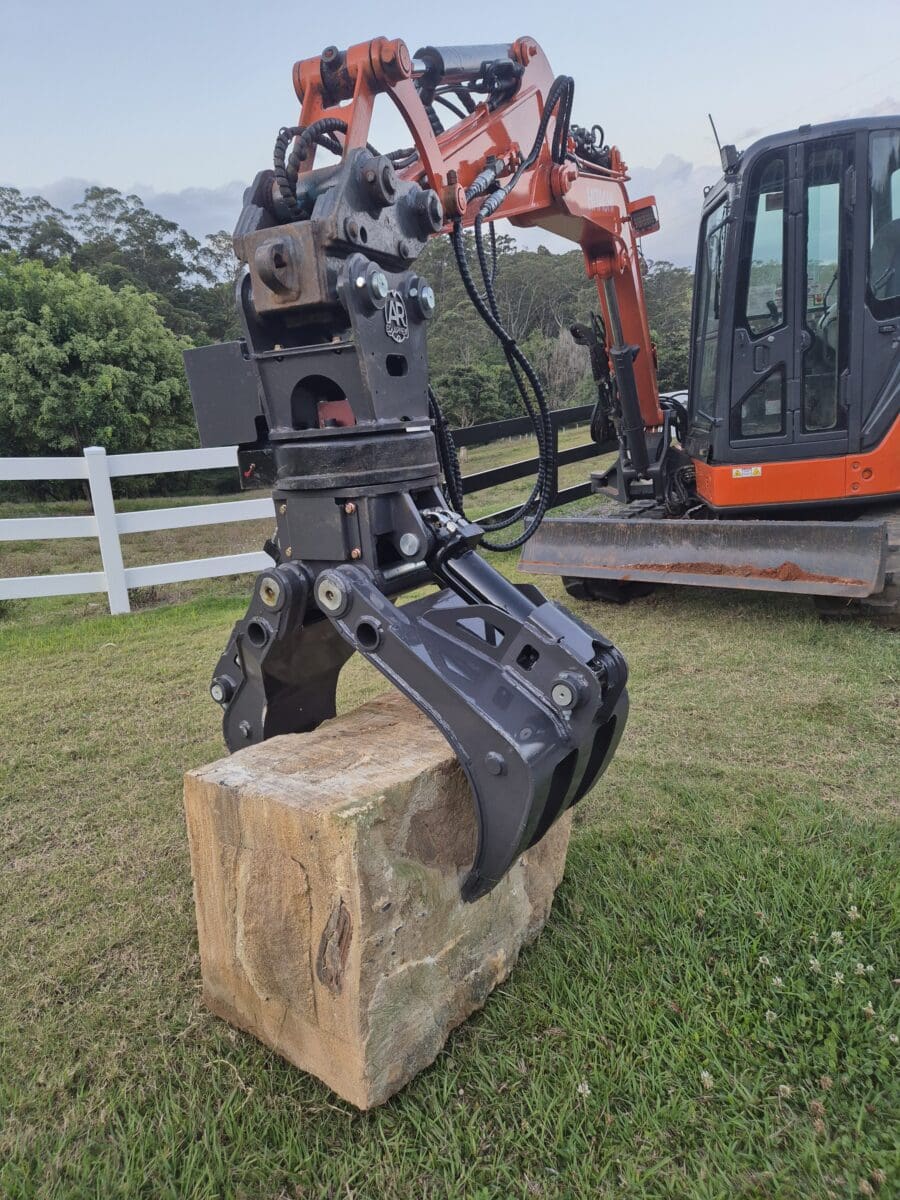

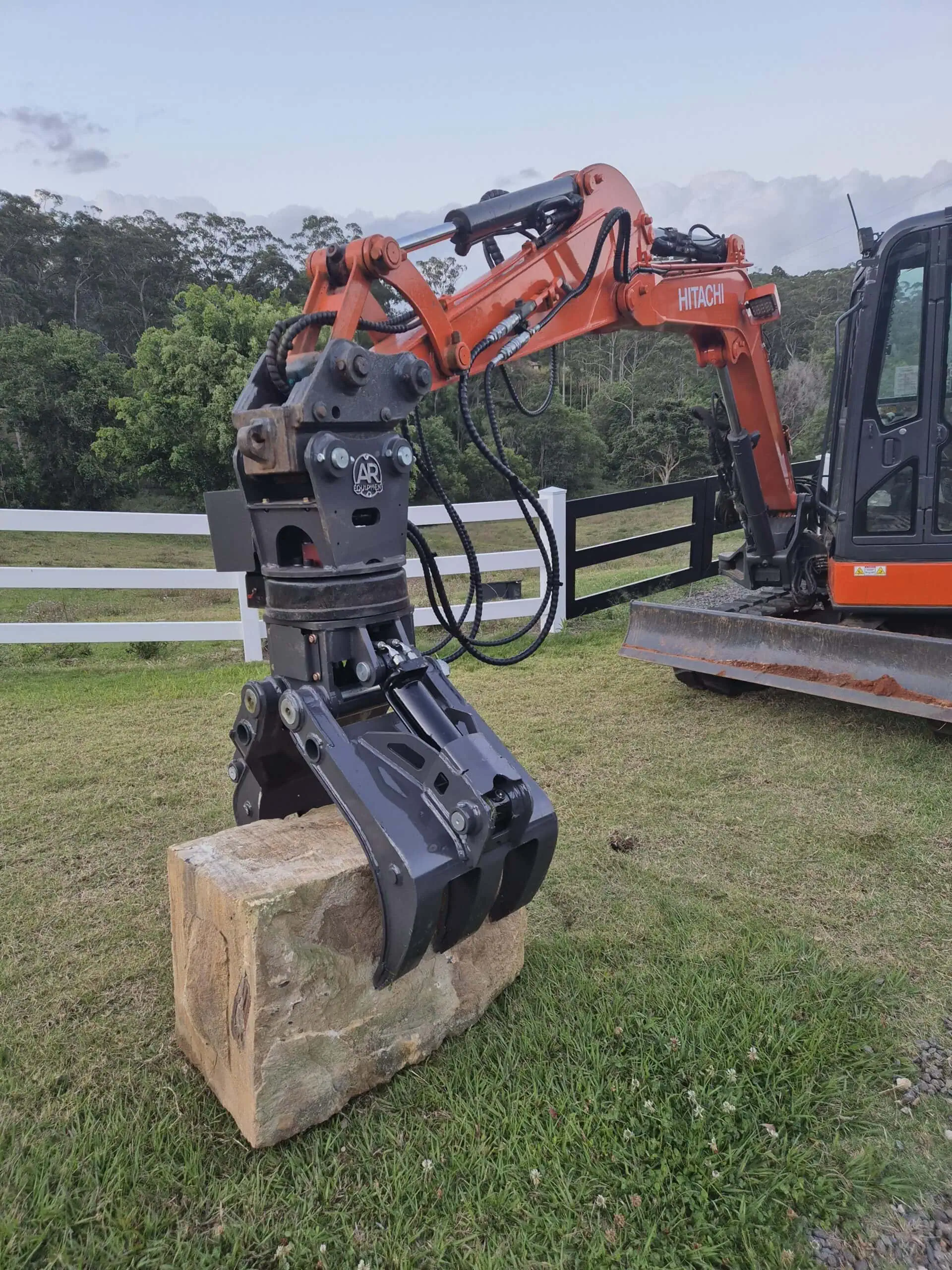

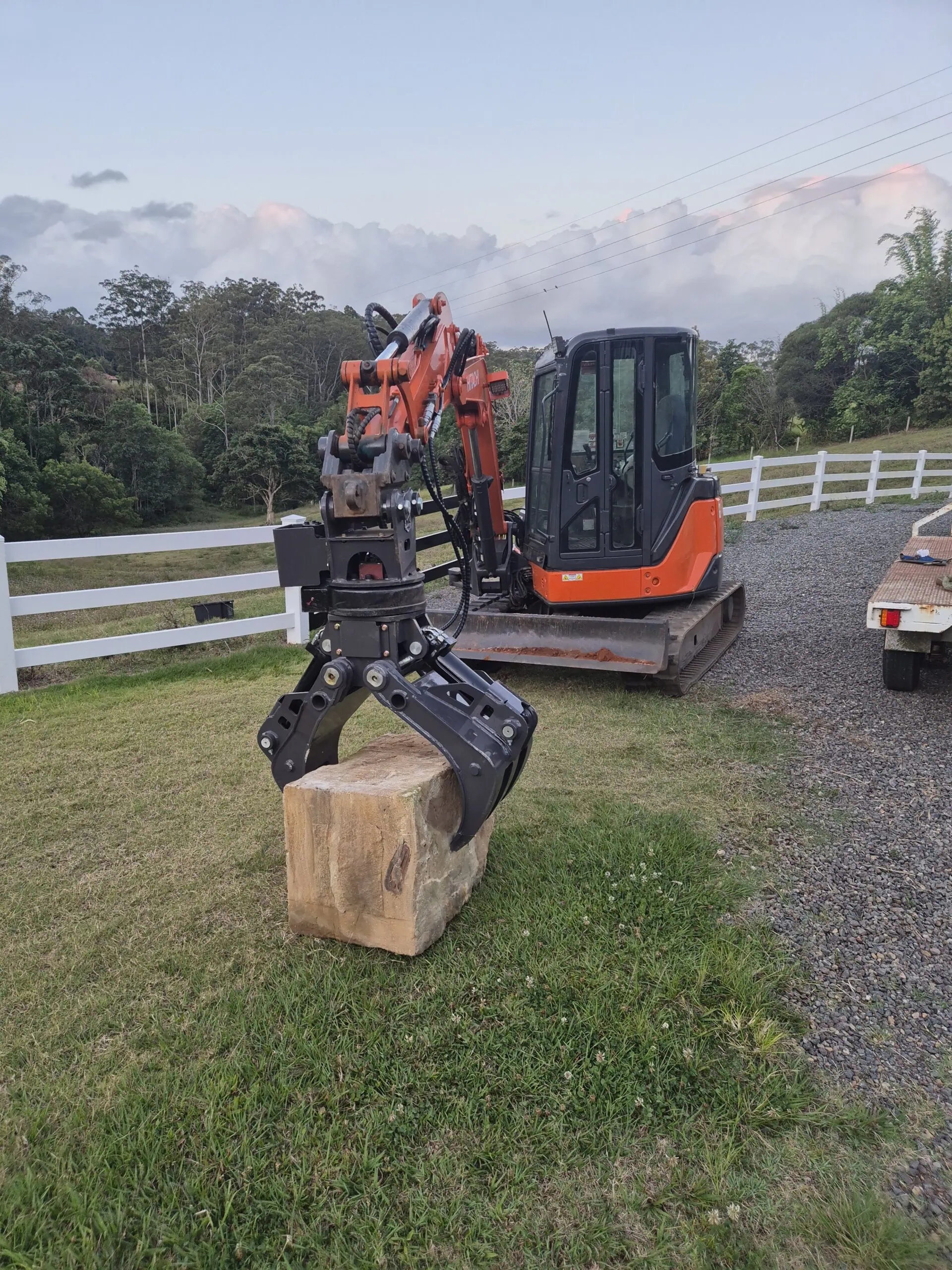

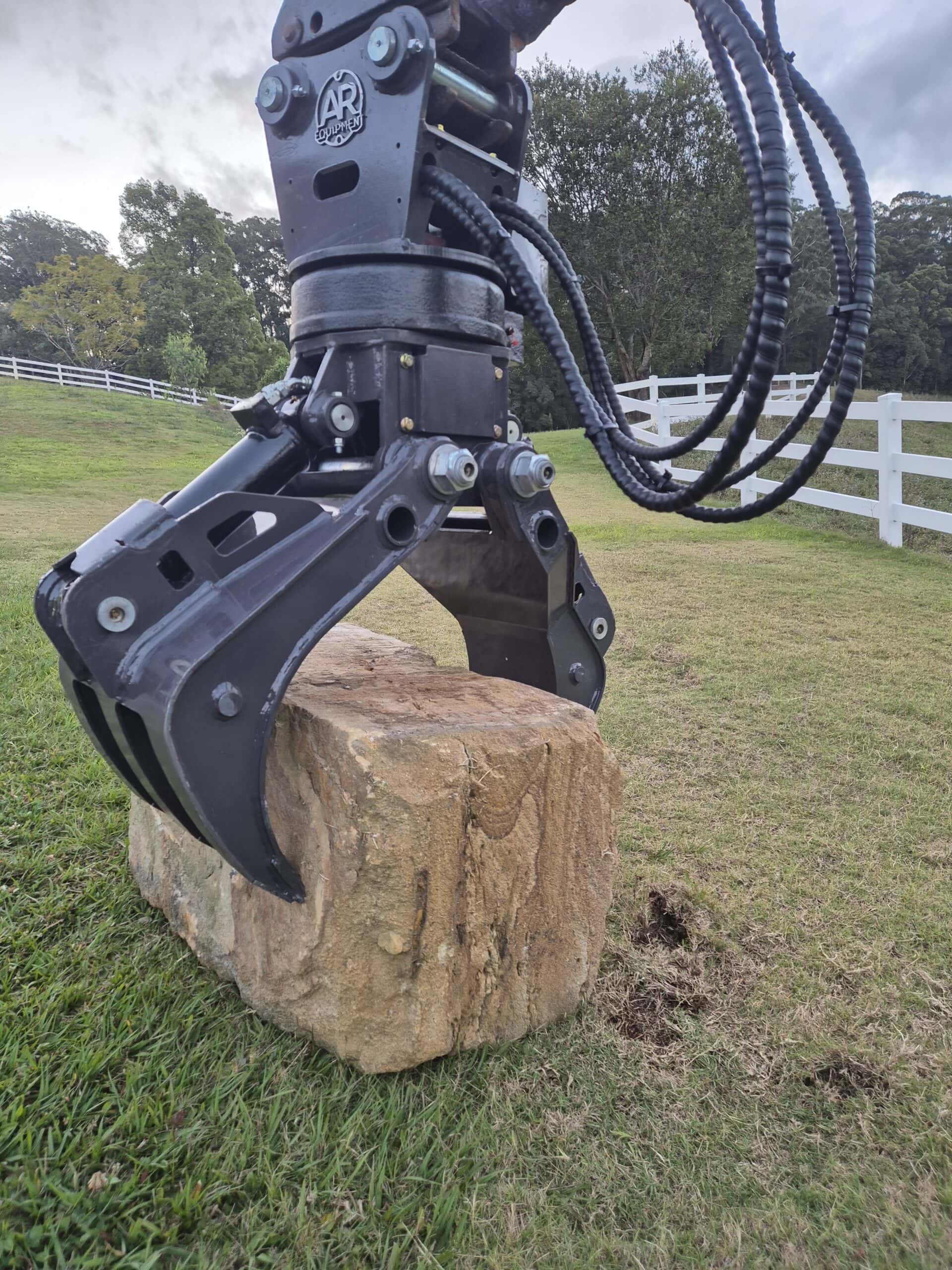

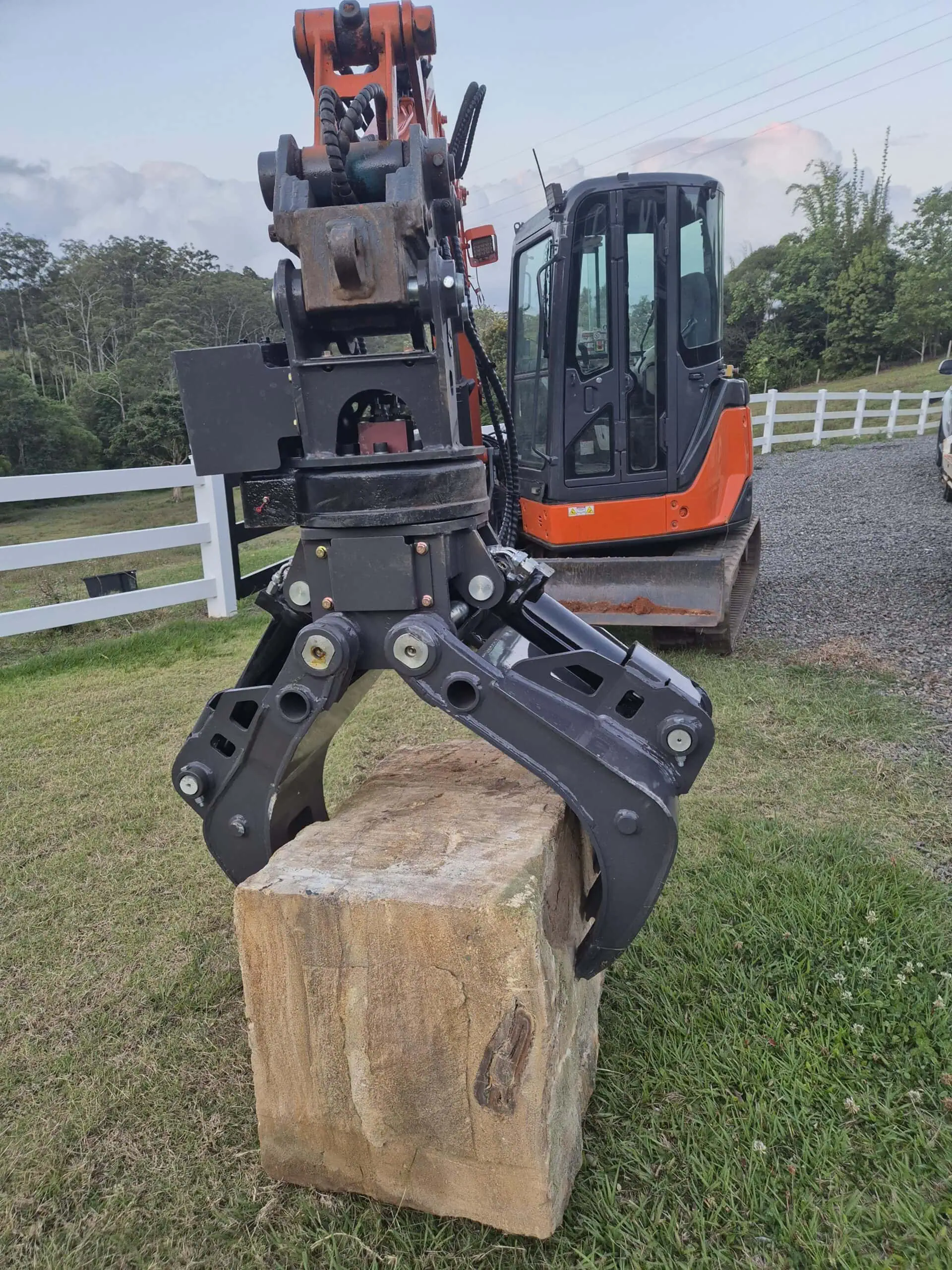

Can I build a rock or sandstone wall with it?
Yes, that’s one of the main jobs it was designed for. The box tine jaws grip and centre the block, and the 360° rotation lets you turn each block to the face of the wall instead of repositioning the machine.
What hydraulics does my excavator need?
Two auxiliary circuits: one for opening and closing the jaws, and one for rotation. The jaws need 50 L/min on the 5–6.5T, 70 on the 7–9T, 75 on the 12–16T and 90 on the 20–30T. Rotation needs 12–18 L/min at 2,000 psi on every size. The 12–16T and 20–30T also need a case drain.
Why does it need two auxiliary circuits? Can I use a diverter valve?
We don’t recommend it. There isn’t room on the grab for a six-port valve, and with an electric diverter that swaps one circuit between rotate and grab, the jaws lose pressure while you rotate. You can drop the load, and we consider that unsafe.
What is a case drain and does my grab need one?
A case drain is a separate low-pressure line that returns oil from the rotation motor’s case to the tank. The 12–16T and 20–30T need one, because bigger, more powerful machines put larger forces through the grab. The 5–6.5T and 7–9T don’t, because the cross port relief valve handles the shock on smaller machines. Watch our short on what a case drain is.
Does the rotation have a brake?
No, on purpose. If a grab with a rotation brake is overloaded, the brake holds while the load keeps going, and that force can snap the input shaft off the motor. Instead, the Gen 2 uses a holding (balance) valve that works as a cross port relief valve on the rotation circuit.
What’s included?
The head bracket, hoses and couplers. The pins are matched to your machine, so tell us your excavator make and model when you order.
How is it different from the single ram, twin ram and rotating demolition sorting grabs?
The single ram grab closes on one cylinder and doesn’t rotate. The twin ram grab is basically a Gen 2 without the rotating head: the same twin cylinders and box tine jaws. The rotating demolition sorting grab rotates too, but has paddle-style jaws with a bolt-on cutting edge for waste and demolition sorting. The Gen 2’s box tine jaws suit rock walls, sandstone and timber.
What changed from the Gen 1 rotating grab?
The Gen 1 had bucket-teeth tips that could fail and break off, and serrated jaws that were good on rock but no good for gripping timber. The Gen 2 uses curved plates and box tine jaws, which are much more rigid, have had no tip failures, and grip timber and sandstone blocks far better.
How much does the Gen 2 rotating grab cost?
Prices ex GST: 5–6.5T $9,500, 7–9T $9,990, 12–16T $18,990 and 20–30T $24,990. Freight is calculated on your quote or at checkout.
What warranty does it have?
2 years, covering cylinder and structural failure, plus the rotator motor and valving. Hoses are never covered on any attachment.
Is it in stock and how fast can I get one?
Yes. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Where is it made?
The Gen 2 is designed and engineered in Australia by AR Equipment and prototype-tested on our own machinery. The body is fabricated in China to our design, and final assembly, flow-bench testing, greasing and a pre-dispatch checklist are done at our Burnside QLD workshop.
Can I get spare parts and servicing?
Yes. We hold Gen 2 parts, including cylinders and rotation motors, and our Burnside workshop services and repairs what we sell.
Can I finance it?
Use the finance calculator on this page to estimate repayments. Repayments are indicative only and subject to approval and credit assessment.
How do I order or get a quote?
Use the quote form on this page or call 1300 441 121, Monday to Friday 7:30am to 5:00pm.



Enquire about our 2025 product catalogue
Access our comprehensive excavator and skid steer equipment catalogue, featuring complete specifications, pricing, and technical details for our full range of attachments and machinery solutions.
Get In Touch
Please fill out the form below and one of our friendly staff will get back to you







Reviews
There are no reviews yet.
