Excavator Grab Bucket: Dig, Grab and Pull Stumps, 3–30T
Get a quote or call 1300 441 121
Hydraulic grab bucket that digs, grabs and pulls: six sizes for 3 to 30 tonne excavators.
The strong bottom end connects directly to your excavator’s hitch, so you can pull stumps and concrete footings out of the ground, then grab timber or waste with a wide-opening jaw that’s larger than a single ram grab. NM400 wear areas, interchangeable teeth, a protected 5,000 psi cylinder, and head bracket, hoses and couplers included. One auxiliary circuit. From $2,850 ex GST. 2-year warranty on cylinder and structural failure.
Fully backed, serviced, in stock and ready to go. In stock, usually dispatched same day from Burnside.
| Model | 3–4T grab bucket | 5–6.5T grab bucket | 7.5–9T grab bucket | 12–16T grab bucket | 20–23T grab bucket | 25–30T grab bucket |
|---|---|---|---|---|---|---|
| Excavator size | 3–4 tonnes | 5–6.5 tonnes | 7.5–9 tonnes | 12–16 tonnes | 20–23 tonnes | 25–30 tonnes |
| Weight | 150 kg | 260 kg | 280 kg | 570 kg | 860 kg | 900 kg |
| Maximum jaw opening | 740 mm | 1,305 mm | 1,305 mm | 1,560 mm | 1,875 mm | 1,875 mm |
| Width | 420 mm | 575 mm | 575 mm | 620 mm | 750 mm | 750 mm |
| Wear areas | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips |
| Head bracket | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included |
| Teeth | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable |
| Oil flow | 20 L/min | 30 L/min | 40 L/min | 60 L/min | 80 L/min | 90 L/min |
| Auxiliary circuits | One | One | One | One | One | One |
| Cylinder | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price (ex GST) | $2,850 | $3,750 | $4,500 | $7,500 | $9,990 | $10,599 |
| Part code (Xero) | ARE3-4TGB | ARE5-6.5TGB | ARE7.5-9TGB | ARE12-16TGB | ARE20-23TGB | ARE25-30TGB |
The AR Equipment grab bucket is a hydraulic excavator bucket with a jaw that closes over the load, so one attachment digs, grabs and pulls. The strong bottom end of the bucket connects directly to the hitch of your excavator, which means you can pull with it: pull a tree stump or a concrete footing out of the ground, then grab timber or waste with a wide jaw opening that’s larger than a single ram grab.
Six sizes for 3 to 30 tonne excavators: 3–4T at $2,850, 5–6.5T at $3,750, 7–9T at $4,500, 12–16T at $7,500, 20–23T at $9,990 and 25–30T at $10,599, all ex GST, with the head bracket, hoses and couplers included. Fully backed, serviced, in stock and ready to go.
Grab bucket specifications
| Model | 3–4T grab bucket | 5–6.5T grab bucket | 7–9T grab bucket | 12–16T grab bucket | 20–23T grab bucket | 25–30T grab bucket |
|---|---|---|---|---|---|---|
| Excavator size | 3–4 tonnes | 5–6.5 tonnes | 7–9 tonnes | 12–16 tonnes | 20–23 tonnes | 25–30 tonnes |
| Weight | 150 kg | 260 kg | 280 kg | 570 kg | 860 kg | 900 kg |
| Maximum jaw opening | 740 mm | 1,305 mm | 1,305 mm | 1,560 mm | 1,875 mm | 1,875 mm |
| Width | 420 mm | 575 mm | 575 mm | 620 mm | 750 mm | 750 mm |
| Wear areas | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips |
| Head bracket | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included |
| Teeth | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable |
| Oil flow | 20 L/min | 30 L/min | 40 L/min | 60 L/min | 80 L/min | 90 L/min |
| Auxiliary circuits | One | One | One | One | One | One |
| Cylinder | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price (ex GST) | $2,850 | $3,750 | $4,500 | $7,500 | $9,990 | $10,599 |
| Part code (Xero) | ARE3-4TGB | ARE5-6.5TGB | ARE7-9TGB | ARE12-16TGB | ARE20-23TGB | ARE25-30TGB |
Built to dig, grab and pull
Strong bottom end, direct to the hitch
The strength of the grab bucket is in the bottom end of the bucket, which connects directly to the hitch of the excavator. That’s what lets you pull with it. You can pull a tree stump out of the ground, or a concrete footing.
Wide-opening jaws
The jaws have a larger opening than a single ram grab, so you can pick up bigger piles of timber or bigger piles of waste in a single bite. A hydraulic jaw (grab thumb) closes over the load.
NM400 wear areas and a Q345 head bracket
The wear areas, which are the cutting edge, the side cheek plates and the wear strips, are NM400, a 400 grade wear-resistant steel, like the jaws on our other grabs. The head bracket is Q345 steel, and it’s included.
Interchangeable teeth and a protected cylinder
The teeth are interchangeable, so you replace a worn tooth instead of the bucket. The cylinder is protected and rated to 5,000 psi, like every AR Equipment hydraulic grab.
Hydraulic requirements
- Auxiliary circuits: one, to open and close the jaw.
- Oil flow: 20 L/min (3–4T), 30 L/min (5–6.5T), 40 L/min (7–9T), 60 L/min (12–16T), 80 L/min (20–23T), 90 L/min (25–30T). Same as our single ram grabs.
- Cylinder: protected, rated to 5,000 psi.
- Supplied: head bracket, hoses and couplers.
- Send us your make, model and pin size and we’ll confirm the hydraulic set-up and the pins before you order.
Grab bucket vs single ram grab vs rotating grab
| Grab bucket | Single ram grab | Rotating grab (Gen 2, demolition) | |
|---|---|---|---|
| Best for | Digging, grabbing and pulling stumps and footings with one attachment | Logs, rock and general handling | Turning the load: demolition, sorting, timber |
| Pulls stumps and footings | Yes: the strong bottom end connects directly to the excavator hitch | Not what it is built for | Not what it is built for |
| Digs a trench | Yes | Not what it is built for | Not what it is built for |
| Rotation | No: fixed | No: fixed | Continuous 360° |
| Jaw opening | Larger than a single ram grab | See the single ram grab page | See the grab pages |
| Teeth | Interchangeable | See the single ram grab page | Box tine or bolt-on edge |
Which size suits your excavator?
- 3–4T: 3 to 4 tonne excavators. 150 kg, 740 mm opening, 420 mm wide. 20 L/min. $2,850 ex GST.
- 5–6.5T: 5 to 6.5 tonne excavators. 260 kg, 1,305 mm opening, 575 mm wide. 30 L/min. $3,750 ex GST.
- 7–9T: 7 to 9 tonne excavators. 280 kg, 1,305 mm opening, 575 mm wide. 40 L/min. $4,500 ex GST.
- 12–16T: 12 to 16 tonne excavators. 570 kg, 1,560 mm opening, 620 mm wide. 60 L/min. $7,500 ex GST.
- 20–23T: 20 to 23 tonne excavators. 860 kg, 1,875 mm opening, 750 mm wide. 80 L/min. $9,990 ex GST.
- 25–30T: 25 to 30 tonne excavators. 900 kg, 1,875 mm opening, 750 mm wide. 90 L/min. $10,599 ex GST. The same size as the 20–23T in a heavier-duty build.
- Not sure? Send us your make, model and pin size and we’ll confirm the size.
Where it works
- Land clearing: knock trees over, dig stumps out and grab the timber
- Demolition and recycling: pull concrete footings and grab waste
- Civil and earthmoving: digging and trenching without changing over
- Farm work: one attachment for trees, stumps and trenches
- Removing tough footings and root systems
- Moving large rocks
Spare parts
| Part | Suits | Part code | Price (ex GST) |
|---|---|---|---|
| Cylinder | 3–4T | SPGBK3CYLINDER | $750 |
| Cylinder | 5–6.5T and 7–9T | SPGBK5-8CYLINDER | $899 |
| Cylinder | 12–16T | SPGBK12CYLINDER | $1,750 |
| Cylinder | 20–23T | SPGBK20CYLINDER | $1,750 |
| Cylinder seal | 3–4T | SPGBK3CYLSEAL | $159 |
| Cylinder seal | 5–6.5T and 7–9T | SPGBK5-8CYLSEAL | $189 |
| Cylinder seal | 12–16T | SPGBK12CYLSEAL | $210 |
| Cylinder seal | 20–23T | SPGBK20CYLSEAL | $295 |
| Tooth and retainer (set) | Grab buckets | SPTOOTHK18S | $29 |
| Tooth adaptor | 3–8T | SPGBKESCOE18ADAPTOR | $45 |
Videos
In stock, well serviced and supported
Fully backed, serviced, in stock and ready to go. We’re fully backed here in Australia with parts and service, and we have a full machine shop at Burnside QLD. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Warranty
2-year warranty covering cylinder and structural failure. Hoses aren’t covered. Full terms are in our Terms and Conditions.
Designed in Australia, assembled at Burnside
Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
Talk to us
AR Equipment Pty Ltd, Burnside QLD. Supplying attachments since 2014, with over 50 years of combined experience. Call 1300 441 121, Monday to Friday 7:30am to 5:00pm, or request a quote on this page.
Also see our Gen 2 rotating grab, rotating demolition sorting grab, single ram grab, which grab should I choose?, all grab buckets and all excavator grabs.
Frequently asked questions
What is a grab bucket?
A grab bucket is an excavator bucket with a hydraulic jaw that closes over the load. It digs like a bucket and grabs and holds like a grab, so one attachment does both. Ours have interchangeable teeth, a protected cylinder and a wide-opening jaw.
What is the difference between a grab bucket and a grab?
A grab bucket is built on a bucket, so it can dig, trench and pull as well as grab. The strength is in the bottom end of the bucket, which connects directly to the excavator’s hitch. A grab such as our single ram grab or rotating grab is built to grab and hold, and the rotating ones turn the load.
What can an excavator grab bucket be used for?
Land clearing, demolition, recycling, civil and farm work. It grabs timber and waste, knocks trees over, digs stumps out, pulls concrete footings out of the ground and digs trenches, without changing attachments.
Can a grab bucket pull out stumps and concrete footings?
Yes. The strength is in the bottom end of the bucket, which connects directly to the hitch of the excavator, so you can pull with it. You can pull a tree stump or a concrete footing out of the ground.
Can I dig with a grab bucket?
Yes. You can dig stumps out of the ground or dig a trench if you need to, and you don’t have to change over to another bucket.
Is a grab bucket good for farm work and land clearing?
It’s popular for both. On a farm you only need to carry one attachment when you’re working a long way from the shed: grab and knock trees over, dig the stumps out and dig a trench with the same bucket.
How much does a grab bucket cost?
Prices are ex GST: 3–4T $2,850, 5–6.5T $3,750, 7–9T $4,500, 12–16T $7,500, 20–23T $9,990 and 25–30T $10,599. The head bracket, hoses and couplers are included.
What sizes of grab bucket do you have?
Six sizes for excavators from 3 to 30 tonnes: 3–4T, 5–6.5T, 7–9T, 12–16T, 20–23T and 25–30T. Choose your excavator size on this page or call us and we’ll match the bucket to your machine.
Which grab bucket size suits my excavator?
Match the bucket to your excavator’s operating weight: the 3–4T suits 3 to 4 tonne machines, the 5–6.5T suits 5 to 6.5 tonnes, the 7–9T suits 7 to 9 tonnes, the 12–16T suits 12 to 16 tonnes, the 20–23T suits 20 to 23 tonnes and the 25–30T suits 25 to 30 tonnes. Send us your make, model and pin size and we’ll confirm the size.
How big are the openings and how heavy are the buckets?
3–4T: 740 mm opening, 420 mm wide, 150 kg. 5–6.5T: 1,305 mm, 575 mm wide, 260 kg. 7–9T: 1,305 mm, 575 mm wide, 280 kg. 12–16T: 1,560 mm, 620 mm wide, 570 kg. 20–23T: 1,875 mm, 750 mm wide, 860 kg. 25–30T: 1,875 mm, 750 mm wide, 900 kg, the same size as the 20–23T in a heavier-duty build.
Is the jaw opening bigger than a single ram grab?
Yes. The jaws have a larger opening than a single ram grab, so you can pick up bigger piles of timber or bigger piles of waste in one bite. See our single ram grab if you only need to grab and hold.
Grab bucket or rotating grab: which should I buy?
Buy the grab bucket if you want to dig, pull and grab with one attachment. Buy a rotating grab, the Gen 2 or the demolition sorting grab, if you want to turn the load, for demolition, sorting or timber work. Our guide, which grab should I choose, compares all three.
Does a grab bucket rotate?
No. The grab bucket is a fixed attachment. It connects directly to the hitch of the excavator, which is what lets you pull with it. For continuous 360° rotation, look at our Gen 2 rotating grab.
What is included with the grab bucket?
The head bracket, hoses and couplers, plus interchangeable teeth and a protected cylinder. Tell us your machine make, model and pin size so the pins match your excavator.
Can I replace the teeth?
Yes, the teeth are interchangeable. A tooth and retainer set is $29 ex GST (SPTOOTHK18S) and a tooth adaptor for the 3–8T is $45 ex GST (SPGBKESCOE18ADAPTOR).
What hydraulics does it need?
One auxiliary hydraulic circuit opens and closes the jaw. The oil flow is the same as our single ram grabs: 3–4T 20 L/min, 5–6.5T 30, 7–9T 40, 12–16T 60, 20–23T 80 and 25–30T 90 L/min. We supply the hoses and couplers. Send us your make and model and we’ll confirm the hydraulic set-up before you order.
What pressure are the cylinders rated to?
The cylinders are rated to 5,000 psi, like every AR Equipment hydraulic grab, and they’re protected on the bucket.
What warranty does a grab bucket have?
2 years on cylinder and structural failure. Hoses aren’t covered. Full terms are in our Terms and Conditions.
What spare parts can I buy, and what do they cost?
Cylinders from $750 (3–4T) to $1,750 (12–16T, 20–23T and 25–30T), cylinder seals from $159 to $295, a tooth and retainer set for $29 and a tooth adaptor for $45, all ex GST. Part codes are in the spare parts table on this page.
What is the grab bucket made of?
The wear areas, which are the cutting edge, the side cheek plates and the wear strips, are NM400, a 400 grade wear-resistant steel. The head bracket is Q345 steel.
Where is the grab bucket made?
Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
Is a grab bucket the same as a grapple bucket?
Yes, they’re two names for the same type of attachment: a bucket with a hydraulic jaw that closes onto the load. Searches also call it a bucket grab.
Is there a grab bucket for a mini excavator?
Yes. The 3–4T grab bucket suits 3 to 4 tonne excavators and starts at $2,850 ex GST. It’s 740 mm open, 420 mm wide and 150 kg.
Are grab buckets in stock?
Yes. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
How do I order a grab bucket?
Choose your excavator size and request a quote on this page, or call 1300 441 121, Monday to Friday 7:30am to 5:00pm. Tell us your machine make, model and pin size.
Which grab should I choose?
All four have cylinders rated to 5,000 psi. The difference is the job each one is built for.
| Gen 2 rotating grab | Rotating demolition sorting grab | Grab bucket | Twin ram grab | |
|---|---|---|---|---|
| Best for | All-purpose: demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers | Demolition and waste work: sorting fine material and bunching loose rubbish | Digging, grabbing and pulling stumps and footings: land clearing, demolition and farm work | Dedicated grab work: timber, rock and tight rubbish, without rotation |
| Jaws | Box tine on curved plates, closes to 30–50 mm | Wide-opening, curved gathering jaws with a bolt-on cutting edge | Wide-opening jaws, larger than a single ram grab, with interchangeable teeth | Box tine on curved plates, a cylinder on each jaw, closes to 30–50 mm |
| Sorting very fine material | Yes | Best: the flat bolt-on edge gives a fine pinch point | No: built to dig, grab and pull | Closes tight on small pieces; the flat bolt-on edge of the demolition grab is best for the finest material |
| Digs and pulls stumps | Not what it is built for | Not what it is built for | Yes: connects directly to the hitch | Not what it is built for |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | None: fixed | None: fixed |
| Sizes (tonnes) | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 | 3–4, 5–6.5, 7–9, 12–16, 20–23, 25–30 | 5–6.5, 7–9, 12–16, 20–30 |
| Price from (ex GST) | $9,500 (5–6.5T) | $11,990 (5–8T) | $2,850 (3–4T) | $6,500 (5–6.5T) |
| Warranty | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
The grab bucket is the one to buy if you want to dig, grab and pull with one attachment. It doesn’t rotate. If you want to turn the load, choose the Gen 2 rotating grab for all-purpose demolition, sorting and timber work, or the rotating demolition sorting grab for fine sorting and loose rubbish. For dedicated grab work without rotation, see the twin ram grab.
Not sure? Read which grab should I choose, request a quote or call 1300 441 121 and we’ll match the right grab to your excavator.



Hydraulic Excavator Grab Buckets
$2,850.00 $10,599.00 ex-GST
Category: Excavator Grabs
Need Finance?
Use our finance calculator to estimate your repayments.
Estimate your repayments
Disclaimer: Repayments are indicative only and subject to approval and credit assessment.
Key Features
- Digs, grabs and pulls: one attachment for stumps, footings, timber and waste
- Strong bottom end connects directly to the excavator hitch, so you can pull with it
- Wide-opening jaws, larger than a single ram grab
- Interchangeable teeth and a protected cylinder rated to 5,000 psi
- NM400 wear areas: cutting edge, side cheek plates and wear strips
- Head bracket (Q345 steel), hoses and couplers included
- One auxiliary circuit
- Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
- Six sizes for 3–30T excavators, from $2,850 ex GST
- Fully backed, serviced, in stock and ready to go.
Hydraulic Excavator Grab Buckets
$2,850.00 $10,599.00 ex-GST
Need Finance?
Use our finance calculator to estimate your repayments.
Estimate your repayments
Disclaimer: Repayments are indicative only and subject to approval and credit assessment.
Key Features
- Digs, grabs and pulls: one attachment for stumps, footings, timber and waste
- Strong bottom end connects directly to the excavator hitch, so you can pull with it
- Wide-opening jaws, larger than a single ram grab
- Interchangeable teeth and a protected cylinder rated to 5,000 psi
- NM400 wear areas: cutting edge, side cheek plates and wear strips
- Head bracket (Q345 steel), hoses and couplers included
- One auxiliary circuit
- Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
- Six sizes for 3–30T excavators, from $2,850 ex GST
- Fully backed, serviced, in stock and ready to go.
Product Overview
Get a quote or call 1300 441 121
Hydraulic grab bucket that digs, grabs and pulls: six sizes for 3 to 30 tonne excavators.
The strong bottom end connects directly to your excavator’s hitch, so you can pull stumps and concrete footings out of the ground, then grab timber or waste with a wide-opening jaw that’s larger than a single ram grab. NM400 wear areas, interchangeable teeth, a protected 5,000 psi cylinder, and head bracket, hoses and couplers included. One auxiliary circuit. From $2,850 ex GST. 2-year warranty on cylinder and structural failure.
Fully backed, serviced, in stock and ready to go. In stock, usually dispatched same day from Burnside.
| Model | 3–4T grab bucket | 5–6.5T grab bucket | 7.5–9T grab bucket | 12–16T grab bucket | 20–23T grab bucket | 25–30T grab bucket |
|---|---|---|---|---|---|---|
| Excavator size | 3–4 tonnes | 5–6.5 tonnes | 7.5–9 tonnes | 12–16 tonnes | 20–23 tonnes | 25–30 tonnes |
| Weight | 150 kg | 260 kg | 280 kg | 570 kg | 860 kg | 900 kg |
| Maximum jaw opening | 740 mm | 1,305 mm | 1,305 mm | 1,560 mm | 1,875 mm | 1,875 mm |
| Width | 420 mm | 575 mm | 575 mm | 620 mm | 750 mm | 750 mm |
| Wear areas | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips |
| Head bracket | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included |
| Teeth | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable |
| Oil flow | 20 L/min | 30 L/min | 40 L/min | 60 L/min | 80 L/min | 90 L/min |
| Auxiliary circuits | One | One | One | One | One | One |
| Cylinder | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price (ex GST) | $2,850 | $3,750 | $4,500 | $7,500 | $9,990 | $10,599 |
| Part code (Xero) | ARE3-4TGB | ARE5-6.5TGB | ARE7.5-9TGB | ARE12-16TGB | ARE20-23TGB | ARE25-30TGB |

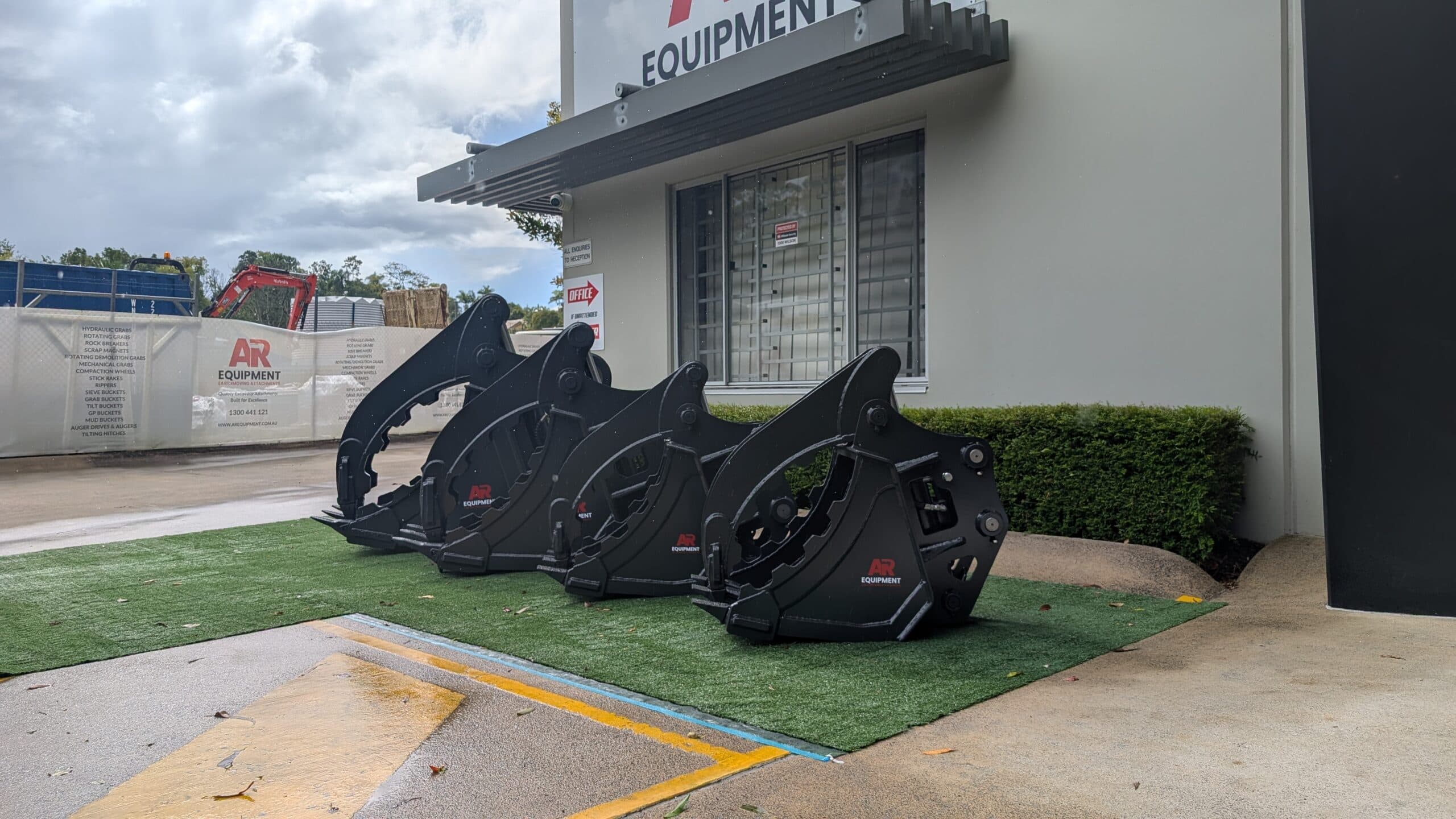

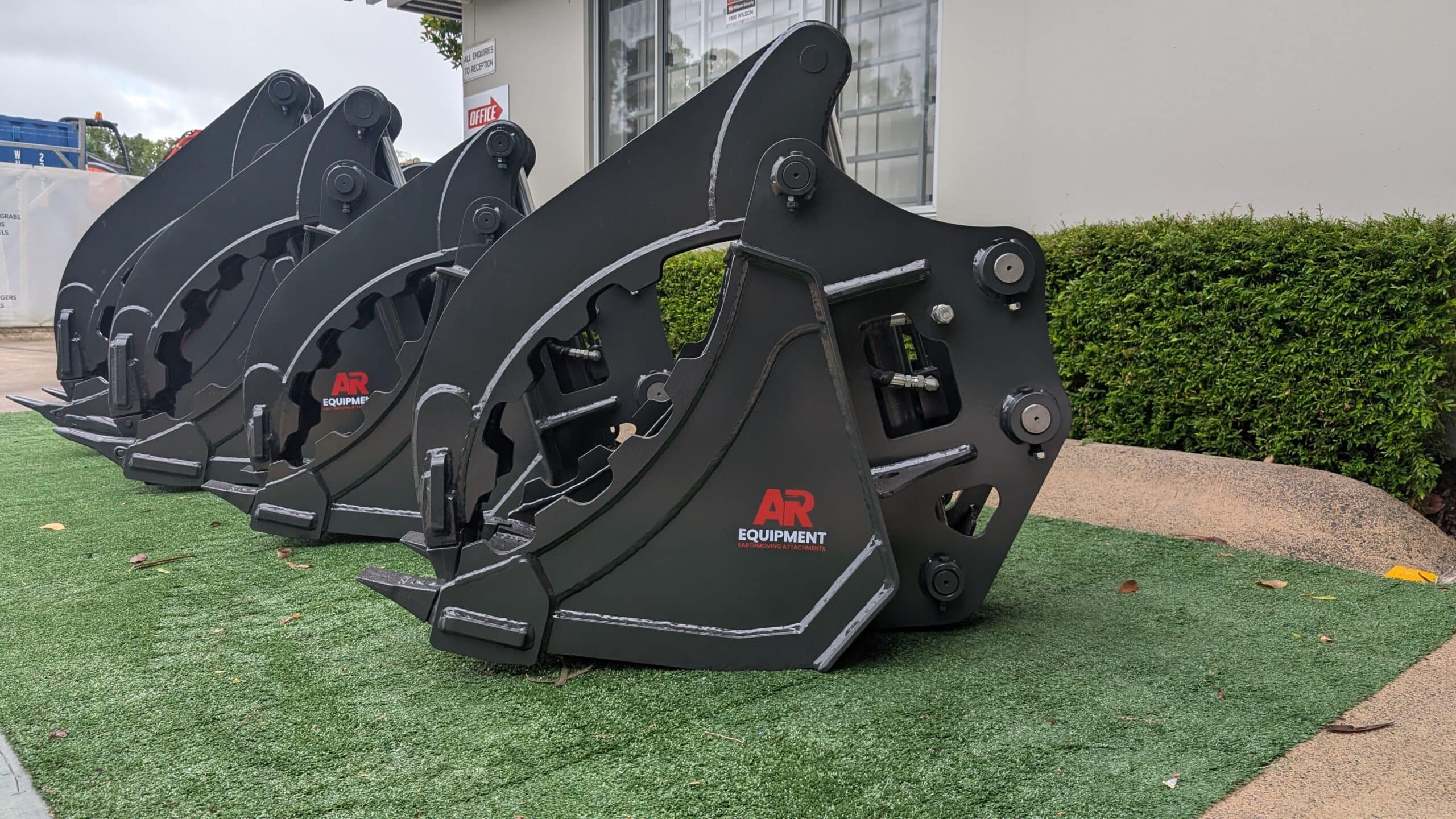

The AR Equipment grab bucket is a hydraulic excavator bucket with a jaw that closes over the load, so one attachment digs, grabs and pulls. The strong bottom end of the bucket connects directly to the hitch of your excavator, which means you can pull with it: pull a tree stump or a concrete footing out of the ground, then grab timber or waste with a wide jaw opening that’s larger than a single ram grab.
Six sizes for 3 to 30 tonne excavators: 3–4T at $2,850, 5–6.5T at $3,750, 7–9T at $4,500, 12–16T at $7,500, 20–23T at $9,990 and 25–30T at $10,599, all ex GST, with the head bracket, hoses and couplers included. Fully backed, serviced, in stock and ready to go.
Grab bucket specifications
| Model | 3–4T grab bucket | 5–6.5T grab bucket | 7–9T grab bucket | 12–16T grab bucket | 20–23T grab bucket | 25–30T grab bucket |
|---|---|---|---|---|---|---|
| Excavator size | 3–4 tonnes | 5–6.5 tonnes | 7–9 tonnes | 12–16 tonnes | 20–23 tonnes | 25–30 tonnes |
| Weight | 150 kg | 260 kg | 280 kg | 570 kg | 860 kg | 900 kg |
| Maximum jaw opening | 740 mm | 1,305 mm | 1,305 mm | 1,560 mm | 1,875 mm | 1,875 mm |
| Width | 420 mm | 575 mm | 575 mm | 620 mm | 750 mm | 750 mm |
| Wear areas | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips | NM400: cutting edge, side cheek plates and wear strips |
| Head bracket | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included | Q345 steel, included |
| Teeth | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable | Interchangeable |
| Oil flow | 20 L/min | 30 L/min | 40 L/min | 60 L/min | 80 L/min | 90 L/min |
| Auxiliary circuits | One | One | One | One | One | One |
| Cylinder | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi | Protected, rated to 5,000 psi |
| Included | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers | Head bracket, hoses and couplers |
| Warranty | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
| Price (ex GST) | $2,850 | $3,750 | $4,500 | $7,500 | $9,990 | $10,599 |
| Part code (Xero) | ARE3-4TGB | ARE5-6.5TGB | ARE7-9TGB | ARE12-16TGB | ARE20-23TGB | ARE25-30TGB |
Built to dig, grab and pull
Strong bottom end, direct to the hitch

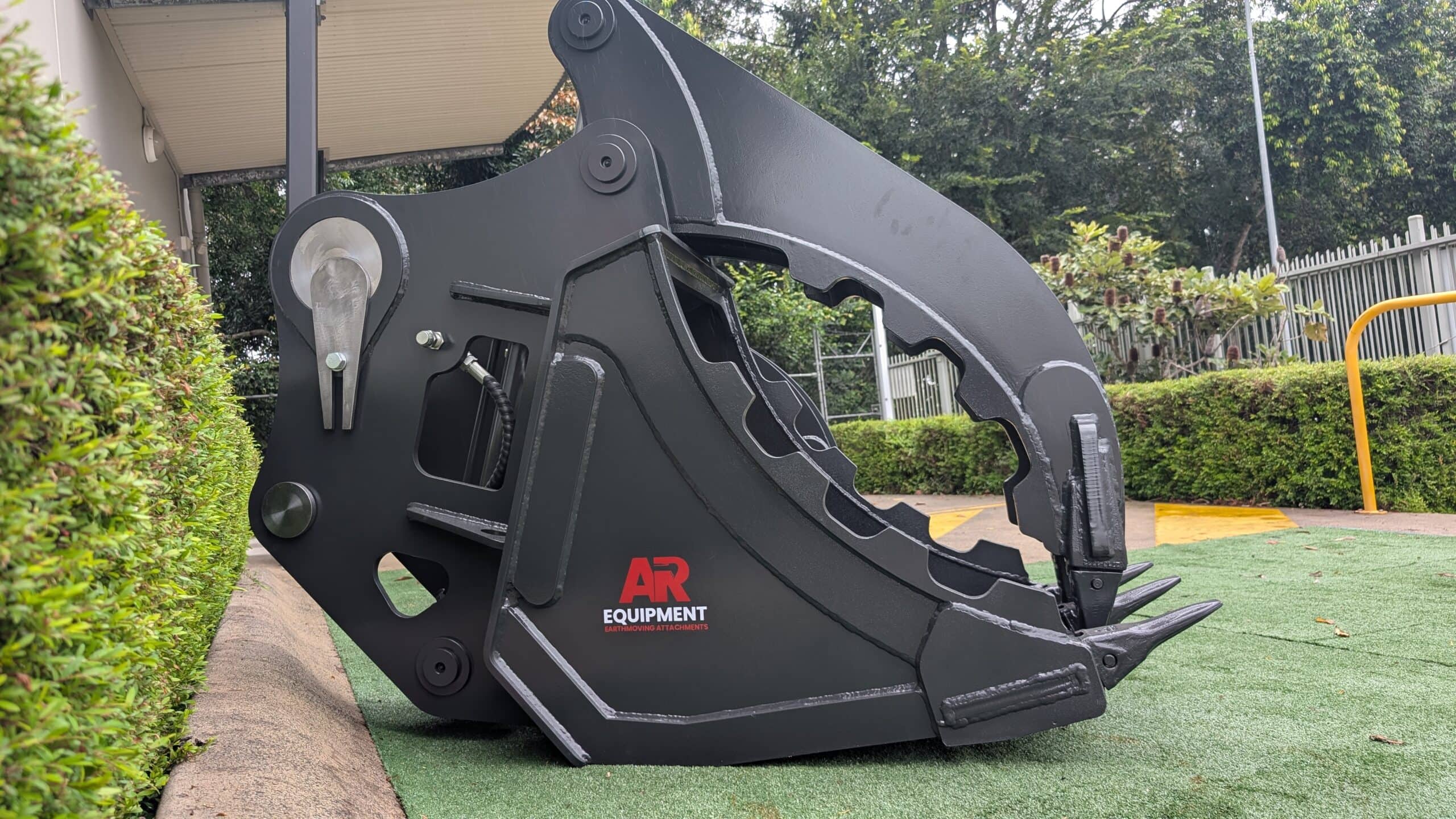

The strength of the grab bucket is in the bottom end of the bucket, which connects directly to the hitch of the excavator. That’s what lets you pull with it. You can pull a tree stump out of the ground, or a concrete footing.
Wide-opening jaws

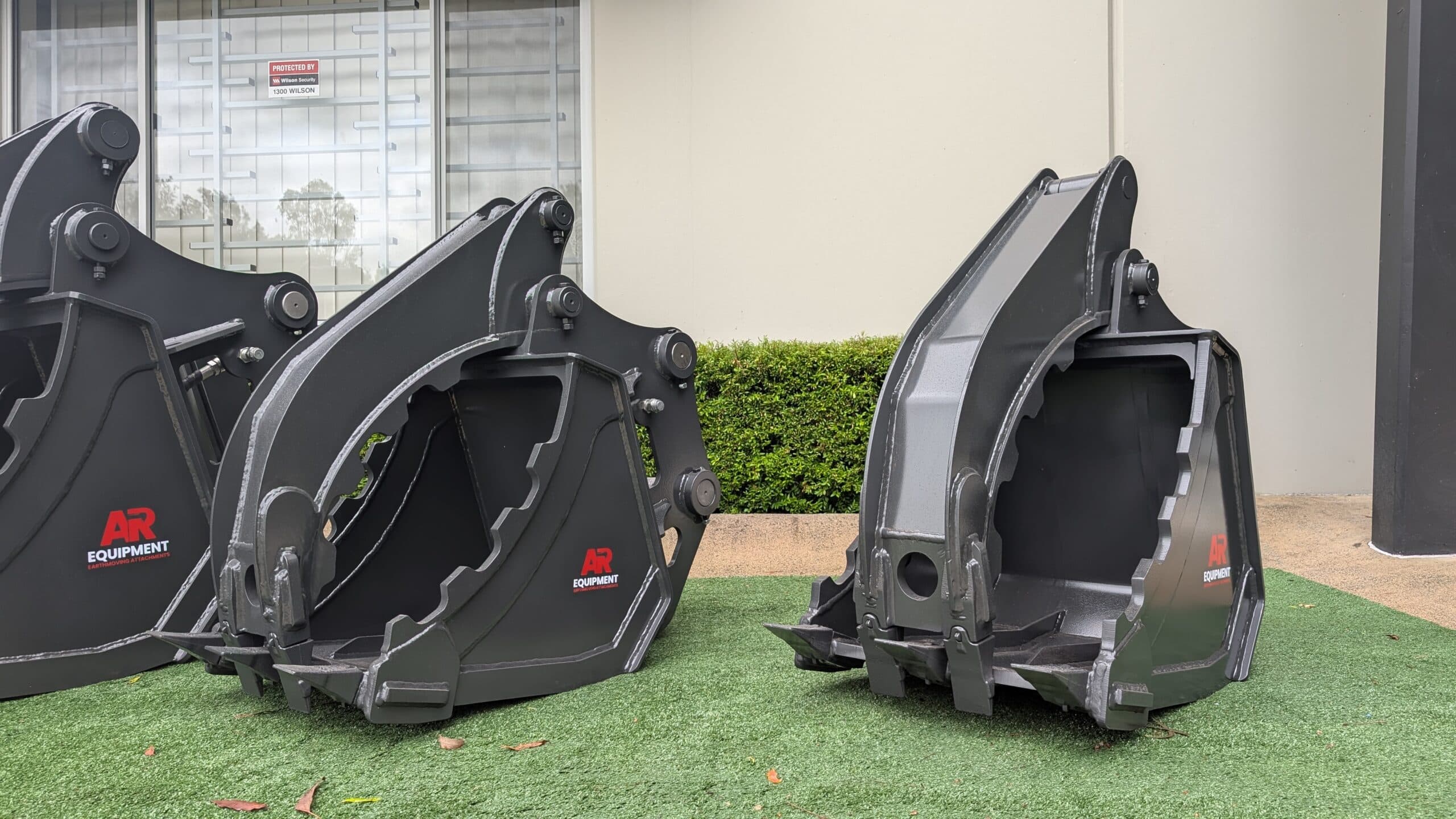

The jaws have a larger opening than a single ram grab, so you can pick up bigger piles of timber or bigger piles of waste in a single bite. A hydraulic jaw (grab thumb) closes over the load.
NM400 wear areas and a Q345 head bracket
The wear areas, which are the cutting edge, the side cheek plates and the wear strips, are NM400, a 400 grade wear-resistant steel, like the jaws on our other grabs. The head bracket is Q345 steel, and it’s included.
Interchangeable teeth and a protected cylinder
The teeth are interchangeable, so you replace a worn tooth instead of the bucket. The cylinder is protected and rated to 5,000 psi, like every AR Equipment hydraulic grab.
Hydraulic requirements
- Auxiliary circuits: one, to open and close the jaw.
- Oil flow: 20 L/min (3–4T), 30 L/min (5–6.5T), 40 L/min (7–9T), 60 L/min (12–16T), 80 L/min (20–23T), 90 L/min (25–30T). Same as our single ram grabs.
- Cylinder: protected, rated to 5,000 psi.
- Supplied: head bracket, hoses and couplers.
- Send us your make, model and pin size and we’ll confirm the hydraulic set-up and the pins before you order.
Grab bucket vs single ram grab vs rotating grab
| Grab bucket | Single ram grab | Rotating grab (Gen 2, demolition) | |
|---|---|---|---|
| Best for | Digging, grabbing and pulling stumps and footings with one attachment | Logs, rock and general handling | Turning the load: demolition, sorting, timber |
| Pulls stumps and footings | Yes: the strong bottom end connects directly to the excavator hitch | Not what it is built for | Not what it is built for |
| Digs a trench | Yes | Not what it is built for | Not what it is built for |
| Rotation | No: fixed | No: fixed | Continuous 360° |
| Jaw opening | Larger than a single ram grab | See the single ram grab page | See the grab pages |
| Teeth | Interchangeable | See the single ram grab page | Box tine or bolt-on edge |

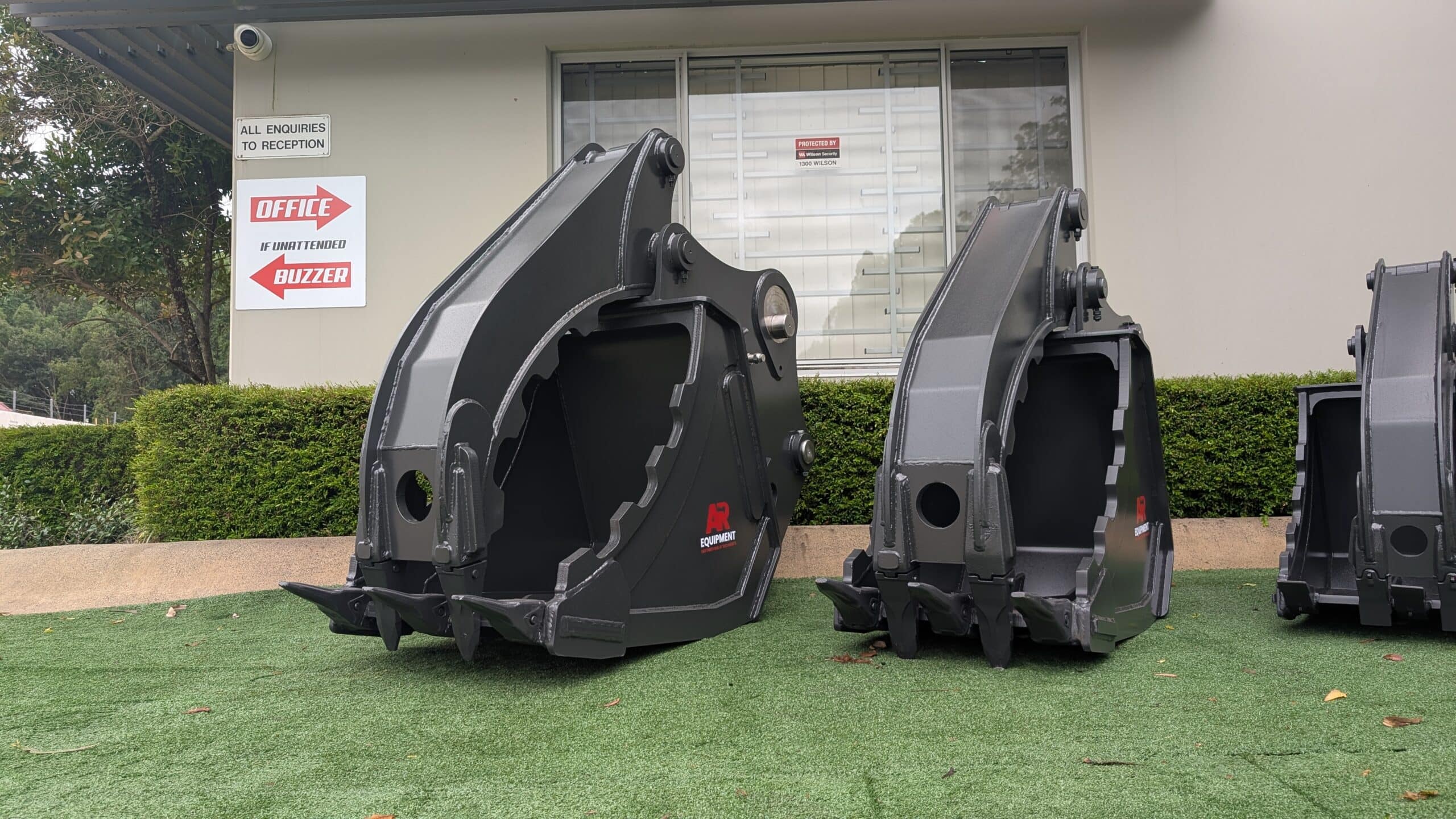

Which size suits your excavator?
- 3–4T: 3 to 4 tonne excavators. 150 kg, 740 mm opening, 420 mm wide. 20 L/min. $2,850 ex GST.
- 5–6.5T: 5 to 6.5 tonne excavators. 260 kg, 1,305 mm opening, 575 mm wide. 30 L/min. $3,750 ex GST.
- 7–9T: 7 to 9 tonne excavators. 280 kg, 1,305 mm opening, 575 mm wide. 40 L/min. $4,500 ex GST.
- 12–16T: 12 to 16 tonne excavators. 570 kg, 1,560 mm opening, 620 mm wide. 60 L/min. $7,500 ex GST.
- 20–23T: 20 to 23 tonne excavators. 860 kg, 1,875 mm opening, 750 mm wide. 80 L/min. $9,990 ex GST.
- 25–30T: 25 to 30 tonne excavators. 900 kg, 1,875 mm opening, 750 mm wide. 90 L/min. $10,599 ex GST. The same size as the 20–23T in a heavier-duty build.
- Not sure? Send us your make, model and pin size and we’ll confirm the size.
Where it works
- Land clearing: knock trees over, dig stumps out and grab the timber
- Demolition and recycling: pull concrete footings and grab waste
- Civil and earthmoving: digging and trenching without changing over
- Farm work: one attachment for trees, stumps and trenches
- Removing tough footings and root systems
- Moving large rocks
Spare parts
| Part | Suits | Part code | Price (ex GST) |
|---|---|---|---|
| Cylinder | 3–4T | SPGBK3CYLINDER | $750 |
| Cylinder | 5–6.5T and 7–9T | SPGBK5-8CYLINDER | $899 |
| Cylinder | 12–16T | SPGBK12CYLINDER | $1,750 |
| Cylinder | 20–23T | SPGBK20CYLINDER | $1,750 |
| Cylinder seal | 3–4T | SPGBK3CYLSEAL | $159 |
| Cylinder seal | 5–6.5T and 7–9T | SPGBK5-8CYLSEAL | $189 |
| Cylinder seal | 12–16T | SPGBK12CYLSEAL | $210 |
| Cylinder seal | 20–23T | SPGBK20CYLSEAL | $295 |
| Tooth and retainer (set) | Grab buckets | SPTOOTHK18S | $29 |
| Tooth adaptor | 3–8T | SPGBKESCOE18ADAPTOR | $45 |
Videos
In stock, well serviced and supported
Fully backed, serviced, in stock and ready to go. We’re fully backed here in Australia with parts and service, and we have a full machine shop at Burnside QLD. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
Warranty
2-year warranty covering cylinder and structural failure. Hoses aren’t covered. Full terms are in our Terms and Conditions.
Designed in Australia, assembled at Burnside

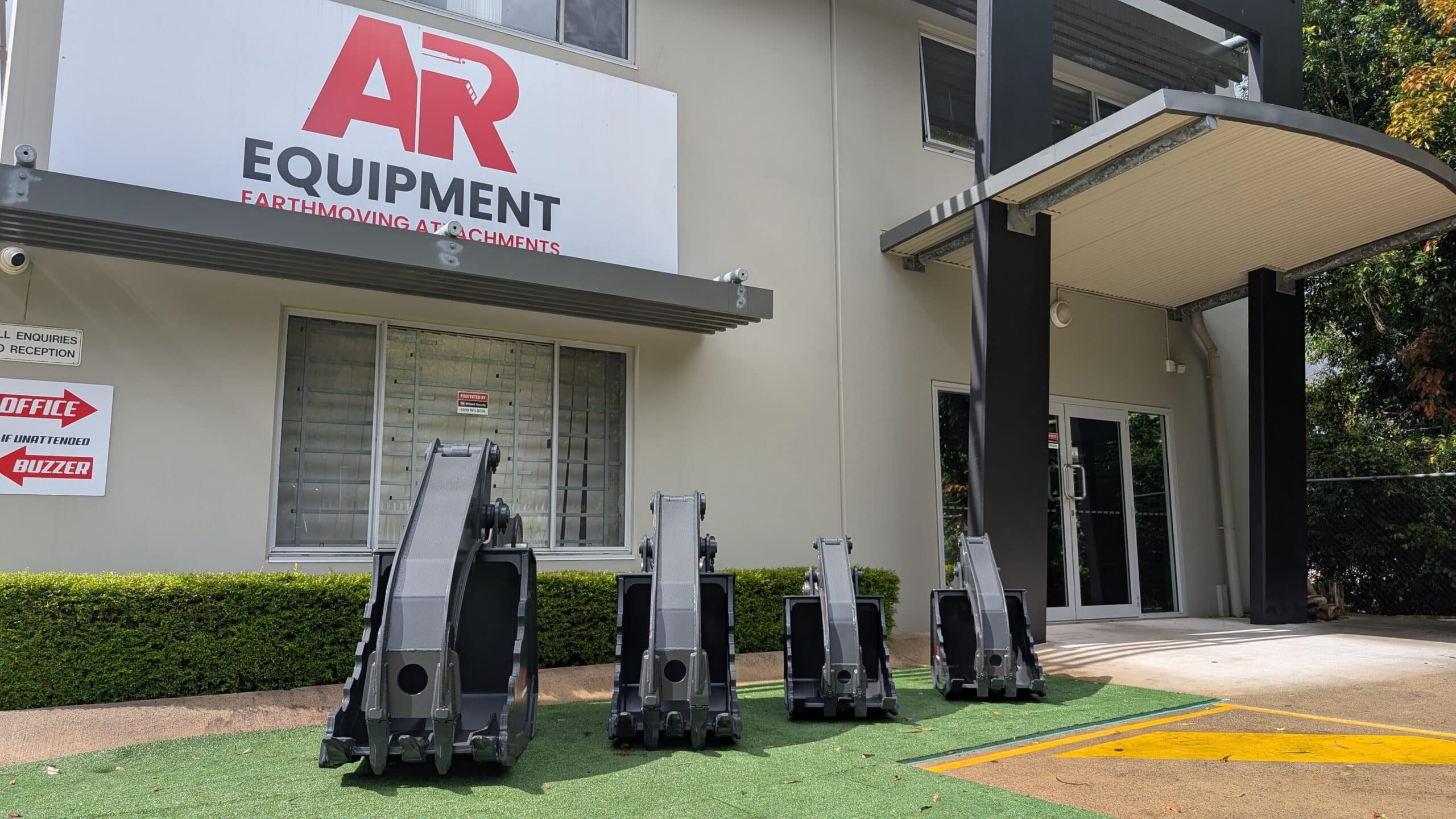

Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
Talk to us
AR Equipment Pty Ltd, Burnside QLD. Supplying attachments since 2014, with over 50 years of combined experience. Call 1300 441 121, Monday to Friday 7:30am to 5:00pm, or request a quote on this page.
Also see our Gen 2 rotating grab, rotating demolition sorting grab, single ram grab, which grab should I choose?, all grab buckets and all excavator grabs.
Frequently asked questions
What is a grab bucket?
A grab bucket is an excavator bucket with a hydraulic jaw that closes over the load. It digs like a bucket and grabs and holds like a grab, so one attachment does both. Ours have interchangeable teeth, a protected cylinder and a wide-opening jaw.
What is the difference between a grab bucket and a grab?
A grab bucket is built on a bucket, so it can dig, trench and pull as well as grab. The strength is in the bottom end of the bucket, which connects directly to the excavator’s hitch. A grab such as our single ram grab or rotating grab is built to grab and hold, and the rotating ones turn the load.
What can an excavator grab bucket be used for?
Land clearing, demolition, recycling, civil and farm work. It grabs timber and waste, knocks trees over, digs stumps out, pulls concrete footings out of the ground and digs trenches, without changing attachments.
Can a grab bucket pull out stumps and concrete footings?
Yes. The strength is in the bottom end of the bucket, which connects directly to the hitch of the excavator, so you can pull with it. You can pull a tree stump or a concrete footing out of the ground.
Can I dig with a grab bucket?
Yes. You can dig stumps out of the ground or dig a trench if you need to, and you don’t have to change over to another bucket.
Is a grab bucket good for farm work and land clearing?
It’s popular for both. On a farm you only need to carry one attachment when you’re working a long way from the shed: grab and knock trees over, dig the stumps out and dig a trench with the same bucket.
How much does a grab bucket cost?
Prices are ex GST: 3–4T $2,850, 5–6.5T $3,750, 7–9T $4,500, 12–16T $7,500, 20–23T $9,990 and 25–30T $10,599. The head bracket, hoses and couplers are included.
What sizes of grab bucket do you have?
Six sizes for excavators from 3 to 30 tonnes: 3–4T, 5–6.5T, 7–9T, 12–16T, 20–23T and 25–30T. Choose your excavator size on this page or call us and we’ll match the bucket to your machine.
Which grab bucket size suits my excavator?
Match the bucket to your excavator’s operating weight: the 3–4T suits 3 to 4 tonne machines, the 5–6.5T suits 5 to 6.5 tonnes, the 7–9T suits 7 to 9 tonnes, the 12–16T suits 12 to 16 tonnes, the 20–23T suits 20 to 23 tonnes and the 25–30T suits 25 to 30 tonnes. Send us your make, model and pin size and we’ll confirm the size.
How big are the openings and how heavy are the buckets?
3–4T: 740 mm opening, 420 mm wide, 150 kg. 5–6.5T: 1,305 mm, 575 mm wide, 260 kg. 7–9T: 1,305 mm, 575 mm wide, 280 kg. 12–16T: 1,560 mm, 620 mm wide, 570 kg. 20–23T: 1,875 mm, 750 mm wide, 860 kg. 25–30T: 1,875 mm, 750 mm wide, 900 kg, the same size as the 20–23T in a heavier-duty build.
Is the jaw opening bigger than a single ram grab?
Yes. The jaws have a larger opening than a single ram grab, so you can pick up bigger piles of timber or bigger piles of waste in one bite. See our single ram grab if you only need to grab and hold.
Grab bucket or rotating grab: which should I buy?
Buy the grab bucket if you want to dig, pull and grab with one attachment. Buy a rotating grab, the Gen 2 or the demolition sorting grab, if you want to turn the load, for demolition, sorting or timber work. Our guide, which grab should I choose, compares all three.
Does a grab bucket rotate?
No. The grab bucket is a fixed attachment. It connects directly to the hitch of the excavator, which is what lets you pull with it. For continuous 360° rotation, look at our Gen 2 rotating grab.
What is included with the grab bucket?
The head bracket, hoses and couplers, plus interchangeable teeth and a protected cylinder. Tell us your machine make, model and pin size so the pins match your excavator.
Can I replace the teeth?
Yes, the teeth are interchangeable. A tooth and retainer set is $29 ex GST (SPTOOTHK18S) and a tooth adaptor for the 3–8T is $45 ex GST (SPGBKESCOE18ADAPTOR).
What hydraulics does it need?
One auxiliary hydraulic circuit opens and closes the jaw. The oil flow is the same as our single ram grabs: 3–4T 20 L/min, 5–6.5T 30, 7–9T 40, 12–16T 60, 20–23T 80 and 25–30T 90 L/min. We supply the hoses and couplers. Send us your make and model and we’ll confirm the hydraulic set-up before you order.
What pressure are the cylinders rated to?
The cylinders are rated to 5,000 psi, like every AR Equipment hydraulic grab, and they’re protected on the bucket.
What warranty does a grab bucket have?
2 years on cylinder and structural failure. Hoses aren’t covered. Full terms are in our Terms and Conditions.
What spare parts can I buy, and what do they cost?
Cylinders from $750 (3–4T) to $1,750 (12–16T, 20–23T and 25–30T), cylinder seals from $159 to $295, a tooth and retainer set for $29 and a tooth adaptor for $45, all ex GST. Part codes are in the spare parts table on this page.
What is the grab bucket made of?
The wear areas, which are the cutting edge, the side cheek plates and the wear strips, are NM400, a 400 grade wear-resistant steel. The head bracket is Q345 steel.
Where is the grab bucket made?
Designed and engineered in Australia, with final assembly at our Burnside QLD workshop.
Is a grab bucket the same as a grapple bucket?
Yes, they’re two names for the same type of attachment: a bucket with a hydraulic jaw that closes onto the load. Searches also call it a bucket grab.
Is there a grab bucket for a mini excavator?
Yes. The 3–4T grab bucket suits 3 to 4 tonne excavators and starts at $2,850 ex GST. It’s 740 mm open, 420 mm wide and 150 kg.
Are grab buckets in stock?
Yes. In stock, usually dispatched same day from Burnside. Uncommon fitments built to order at our Burnside workshop take a little longer, and we’ll give you a date when you order.
How do I order a grab bucket?
Choose your excavator size and request a quote on this page, or call 1300 441 121, Monday to Friday 7:30am to 5:00pm. Tell us your machine make, model and pin size.
Which grab should I choose?
All four have cylinders rated to 5,000 psi. The difference is the job each one is built for.
| Gen 2 rotating grab | Rotating demolition sorting grab | Grab bucket | Twin ram grab | |
|---|---|---|---|---|
| Best for | All-purpose: demolition, sorting, sandstone block walls, timber land clearing, timber sorting and feeding chippers | Demolition and waste work: sorting fine material and bunching loose rubbish | Digging, grabbing and pulling stumps and footings: land clearing, demolition and farm work | Dedicated grab work: timber, rock and tight rubbish, without rotation |
| Jaws | Box tine on curved plates, closes to 30–50 mm | Wide-opening, curved gathering jaws with a bolt-on cutting edge | Wide-opening jaws, larger than a single ram grab, with interchangeable teeth | Box tine on curved plates, a cylinder on each jaw, closes to 30–50 mm |
| Sorting very fine material | Yes | Best: the flat bolt-on edge gives a fine pinch point | No: built to dig, grab and pull | Closes tight on small pieces; the flat bolt-on edge of the demolition grab is best for the finest material |
| Digs and pulls stumps | Not what it is built for | Not what it is built for | Yes: connects directly to the hitch | Not what it is built for |
| Rotation | Continuous 360°, Danfoss motor | Continuous 360°, Danfoss motor | None: fixed | None: fixed |
| Sizes (tonnes) | 5–6.5, 7–9, 12–16, 20–30 | 5–8, 12–16, 20–30 | 3–4, 5–6.5, 7–9, 12–16, 20–23, 25–30 | 5–6.5, 7–9, 12–16, 20–30 |
| Price from (ex GST) | $9,500 (5–6.5T) | $11,990 (5–8T) | $2,850 (3–4T) | $6,500 (5–6.5T) |
| Warranty | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural, plus rotator motor and valving (hoses not covered) | 2 years, cylinder and structural (hoses not covered) | 2 years, cylinder and structural (hoses not covered) |
The grab bucket is the one to buy if you want to dig, grab and pull with one attachment. It doesn’t rotate. If you want to turn the load, choose the Gen 2 rotating grab for all-purpose demolition, sorting and timber work, or the rotating demolition sorting grab for fine sorting and loose rubbish. For dedicated grab work without rotation, see the twin ram grab.
Not sure? Read which grab should I choose, request a quote or call 1300 441 121 and we’ll match the right grab to your excavator.



Enquire about our 2025 product catalogue
Access our comprehensive excavator and skid steer equipment catalogue, featuring complete specifications, pricing, and technical details for our full range of attachments and machinery solutions.
Get In Touch
Please fill out the form below and one of our friendly staff will get back to you














Reviews
There are no reviews yet.
